3.0L Diesel
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

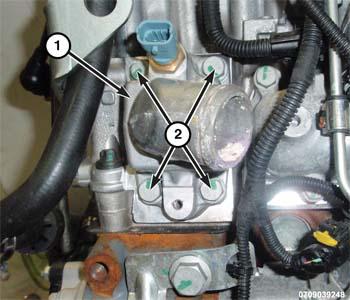

- Install the thermostat housing (1) and tighten the bolts (2) to 25 N.m (18 ft. lbs.).
- Connect the coolant temperature sensor wire harness connector (1).

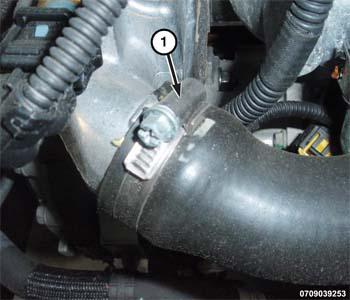

- Install the coolant hose onto the thermostat housing and securely tighten clamp (1).
- Install the Charge Air Cooler (CAC) hose (2) to the EGR air flow control valve elbow and securely tighten clamp (1).
- Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
