3.0L Diesel
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

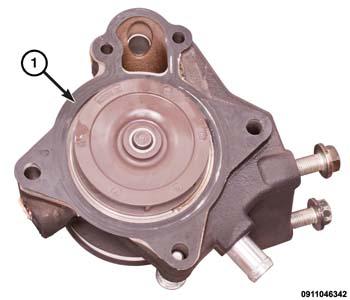

- Install a NEW
gasket (1) onto the water pump.
- Install the water pump (3) and tighten the bolts:
- Two M8 bolts (5) to 25 N.m (18 ft. lbs.).
- Three M10 bolts (2) to 50 N.m (37 ft. lbs.).
- Install the coolant hose (1) onto the water pump (3).
- Install the coolant inlet hose (4) onto the water pump (3).
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
- Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
