3.0L Diesel
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Position the radiator cooling fan (3) into mounts and attaching clips on the radiator. Press down to lock into place.
- Install the harness (1) onto the cooling fan.
- Connect the cooling fan wire harness connectors to the cooling fan motors (3), the resistors (2), and the fan relays (1).

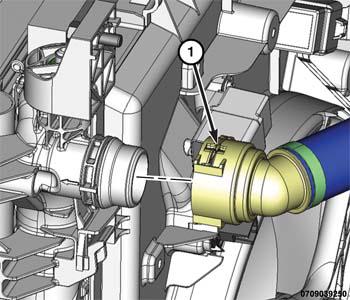

- Install the upper radiator hose (1) to the radiator and lock the retainer clip.
- Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
