TENSIONER, Engine Timing: Description
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

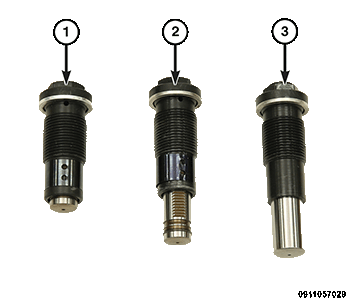

The 3.0L diesel engine uses two types of tensioners. The upper timing tensioner (1, 2) is a fixed one time use tensioner and the lower timing tensioner (3) is a ratcheting type that is reusable. The tensioner are hydraulically operated with the adjusting portion riding on the right timing chain guide. Hydraulic support for the tensioner is supplied by forward oil passages in the engine block.
- New upper timing tensioner (1).
- Used upper timing tensioner (2) that can no longer be used once removed
- The lower timing tensioner (3) is a reusable tensioner
