Upper Timing Cover

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

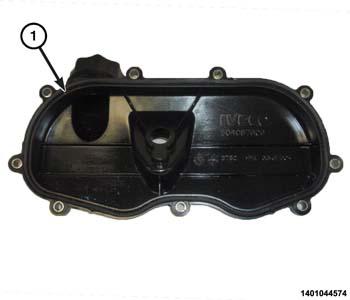

GC0161776Courtesy of CHRYSLER GROUP, LLC
  1. Install a new gasket (1) onto upper timing cover.

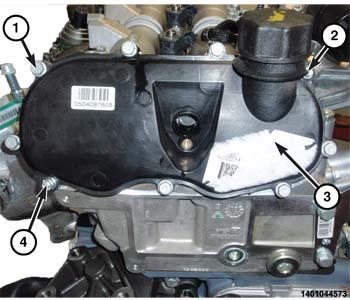

    GC0162030Courtesy of CHRYSLER GROUP, LLC
  2. Install the upper timing cover (3). Tighten bolts (2), nuts (1) to 10 N.m (89 in. lbs.).

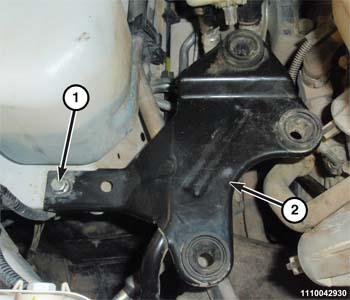

    GC0162118Courtesy of CHRYSLER GROUP, LLC
  3. Install the pressurized coolant bottle mounting bracket (2). Tighten bolt (1) to 25 N.m (18 ft. lbs.).

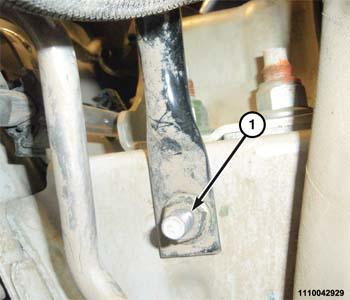

    GC0161907Courtesy of CHRYSLER GROUP, LLC
  4. Install the pressurized coolant bottle mounting bracket nut onto shock tower and tighten to 25 N.m (18 ft. lbs.).

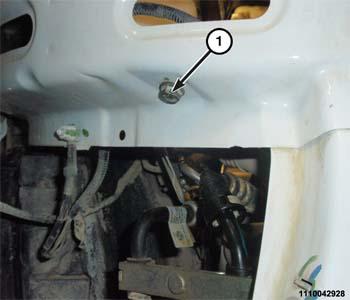

    GC0162171Courtesy of CHRYSLER GROUP, LLC
  5. Install the pressurized coolant bottle mounting bracket bolt (1) and tighten to 25 N.m (18 ft. lbs.).
  6. Install pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, INSTALLATION .
  7. Install the camshaft position sensor. Refer to SENSOR, CAMSHAFT POSITION, INSTALLATION .
  8. Connect the negative battery cable.
