Special Tools
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
| 10368 - Set, Universal Protective Cap | |
| C-3339A - Set, Dial Indicator (Originally Shipped In Kit Number(s) 9202.) |
|
| D-115-2A - Block, Scooter (Originally Shipped In Kit Number(s) 9329-SUP, 9515-SUP, 9516-SUP, 9517-SUP, 9518, 9519, 9540-SUP, 9541-SUP, 9694, 9926.) |
|
| MD998772A - Compressor, Valve Spring (Originally Shipped In Kit Number(s) 8678, 8853, 8854.) |
|
| 99340059 - Remover, Seal (Originally Shipped In Kit Number(s).) |
|
| 99346258 - Installer, Seal (Originally Shipped In Kit Number(s).) |
|
| 99360614 - Pins, Camshaft Locking (Originally Shipped In Kit Number(s).) |
|
| 99396039 - Tool, Alignment (Originally Shipped In Kit Number(s).) |
|

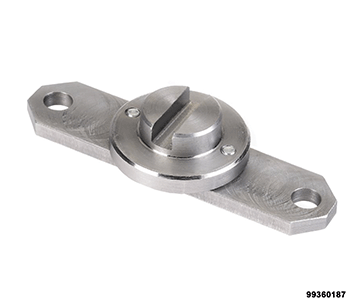

| 99360187 - Holding Tool, Power Steering | |

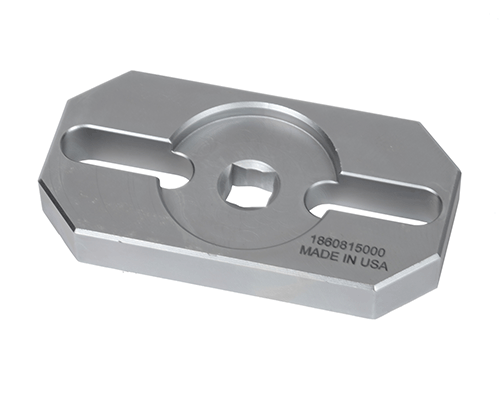

| 1860815000 - Tool, Crankshaft Rotating (Originally Shipped In Kit Number(s).) |
|
| 2000015900 - Remover, Rear Crankshaft Oil Seal (Originally Shipped In Kit Number(s).) |
|
| 2000018200 - Pin, Locking (Originally Shipped In Kit Number(s).) |
|
| 2000033000 - Remover/Installer, Crankshaft Bolt (Originally Shipped In Kit Number(s).) |
|
| 2000033100 - Tool, Flywheel Locking (Originally Shipped In Kit Number(s).) |
|
| 2000035700 - Adapter, Compression Test (Originally Shipped In Kit Number(s).) |
|
| 2014500090 - Adapter, Valve Spring (Originally Shipped In Kit Number(s).) |
|
| 2014700090 - Installer, Rear Crankshaft Oil Seal (Originally Shipped In Kit Number(s).) |
|

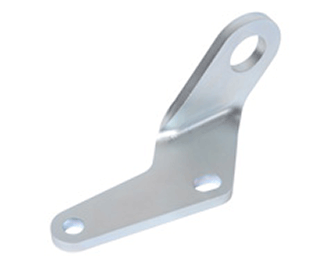

| 2015900090 - Bracket, Engine Lift |
