Switch, Oil Level: Installation
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the gasket sealing area on engine block.

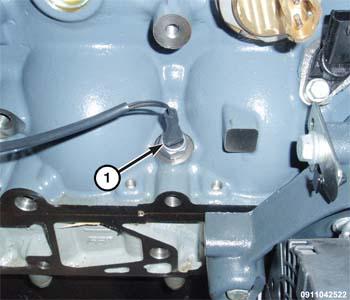

- Install the oil level switch (1) and tighten to 9 N.m (80 in. lbs.).

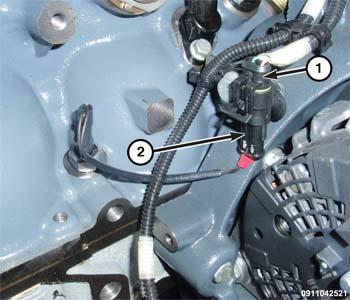

- Attach the oil level sensor wire harness connector (2) to bracket.
- Connect the oil level switch harness connector (1).
- Install the push pin retainer securing the B+ cable to the engine block.
- Install the generator. Refer to GENERATOR, INSTALLATION .
- Remove support and lower the vehicle.
- Connect the negative battery cable.
