Insulator, Engine Mount, Right: Installation

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

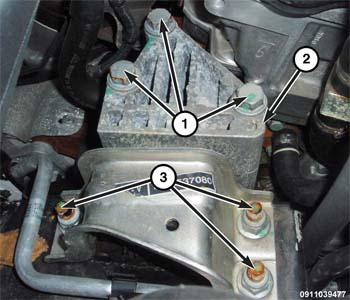

GC0162028Courtesy of CHRYSLER GROUP, LLC
  1. Install the engine mount (2). Tighten nuts (3) to 95 N.m (70 ft. lbs.).
  2. Install the engine mount bolts (1) and tighten to 108 N.m (80 ft. lbs.).
  3. Remove the support from under engine.
  4. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
  5. Connect the negative battery cable.
