Insulator, Engine Mount, Rear: Installation

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

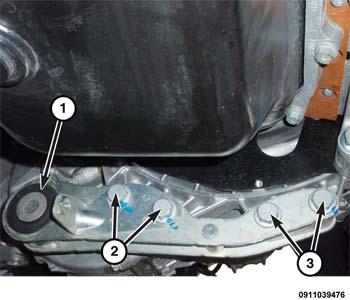

GC0161766Courtesy of CHRYSLER GROUP, LLC
  1. Install the rear engine mount (1). Tighten bolts (2, 3) to 105 N.m (77 ft. lbs.).
  2. Install the Charge Air Cooler (CAC) tube. Refer to COOLER AND HOSES, CHARGE AIR, INSTALLATION .

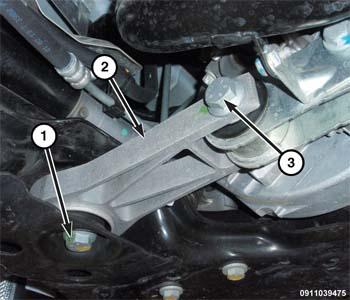

    GC0161832Courtesy of CHRYSLER GROUP, LLC
  3. Install the rear engine mount (2). Tighten bolts (1, 3) to 290 N.m (214 ft. lbs.).
  4. Lower the vehicle.
