Engine Block: Description
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

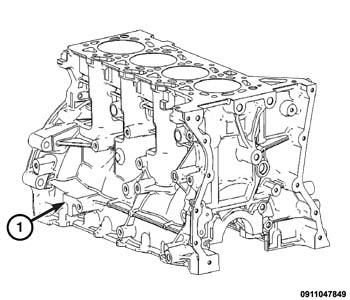

The 3.0L CRD Diesel engine uses a cast iron engine block (1) that incorporates cylinder liners.
- A fractured connecting rod cap design that can not distort connecting rod cap fit.
- The crankshaft is supported by five main bearings.
- Special channels in the crankcase walls allow the passage of coolant and lubrication oil
- The lower part of each cylinder contains an oil jet that sprays oil onto the piston crown to cool it and to ensure that the piston pin is lubricated.
