Damper, Vibration: Installation

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

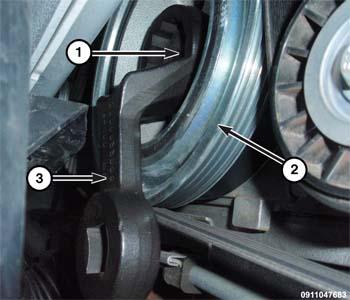

GC0161981Courtesy of CHRYSLER GROUP, LLC
  1. Install the vibration damper (2). Using the (special tool #2000033000, Remover/Installer, Crankshaft Bolt) tool (3), tighten bolts (1) to 350 N.m. (258 ft. lbs.).
  2. Install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .

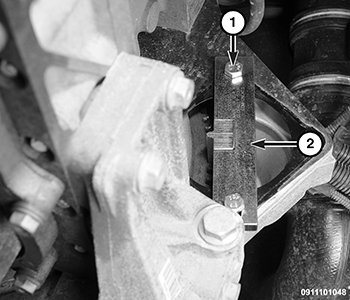

    GC0173236Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (1) and the (special tool #2000033100, Tool, Flywheel Locking) (2).
  4. Install the starter. Refer to STARTER, INSTALLATION .
  5. Remove support and lower the vehicle.
  6. Connect the negative battery cable.
