Section 251 (3.0L Engine (Service Information)): Description
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

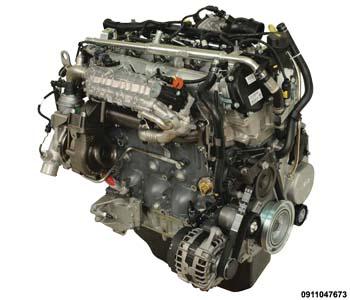

The 3.0L four-cylinder "common rail" direct injection engine is an in-line overhead valve design. The engine utilize a cast iron cylinder block. The engine has a one piece aluminum cylinder head with four valves per cylinder and dual overhead camshafts. The 3.0L is turbocharged with an intercooler and is equipped with a EGR cooler.
The identification stamp for the 3.0L is located on the intake manifold side of the engine block, below the Fuel line connectors.
