Section 249 (Charging (Service Information)): Generator: Removal: 3.0L

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL - 3.0L DIESEL .
  3. Remove the generator heat shield.
  4. Disconnect the generator connectors.

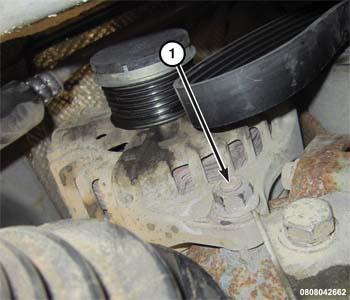

    GC0161977Courtesy of CHRYSLER GROUP, LLC
  5. Remove the upper generator bolt.

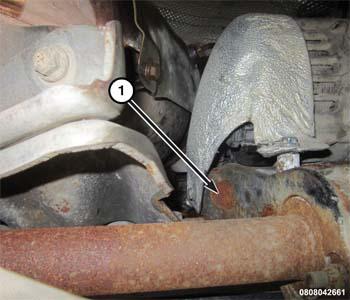

    GC0161973Courtesy of CHRYSLER GROUP, LLC
  6. Loosen the lower bolt. This bolt is located in the recessed hole on the intermediate bearing shaft support. Once the lower bolt is loosened, reposition the generator in order to remove the lower bolt.

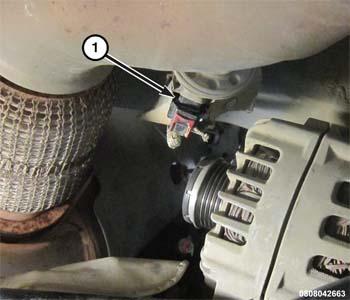

    GC0162128Courtesy of CHRYSLER GROUP, LLC
  7. Remove the Diesel Exhaust Fluid (DEF) injector. Refer to REMOVAL .

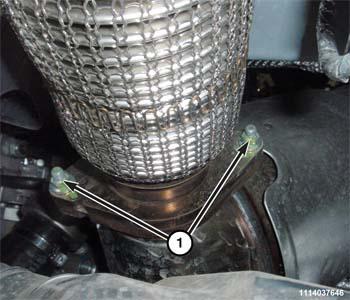

    GC0161818Courtesy of CHRYSLER GROUP, LLC
  8. Remove two bolts securing exhaust flange to obtain clearance to remove the generator.
  9. Pull generator out over the cross member to remove from the vehicle.
