Relay-Rear Window Defogger

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: R0028A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Relay-Rear Window Defogger Connector End View

Courtesy of CHRYSLER

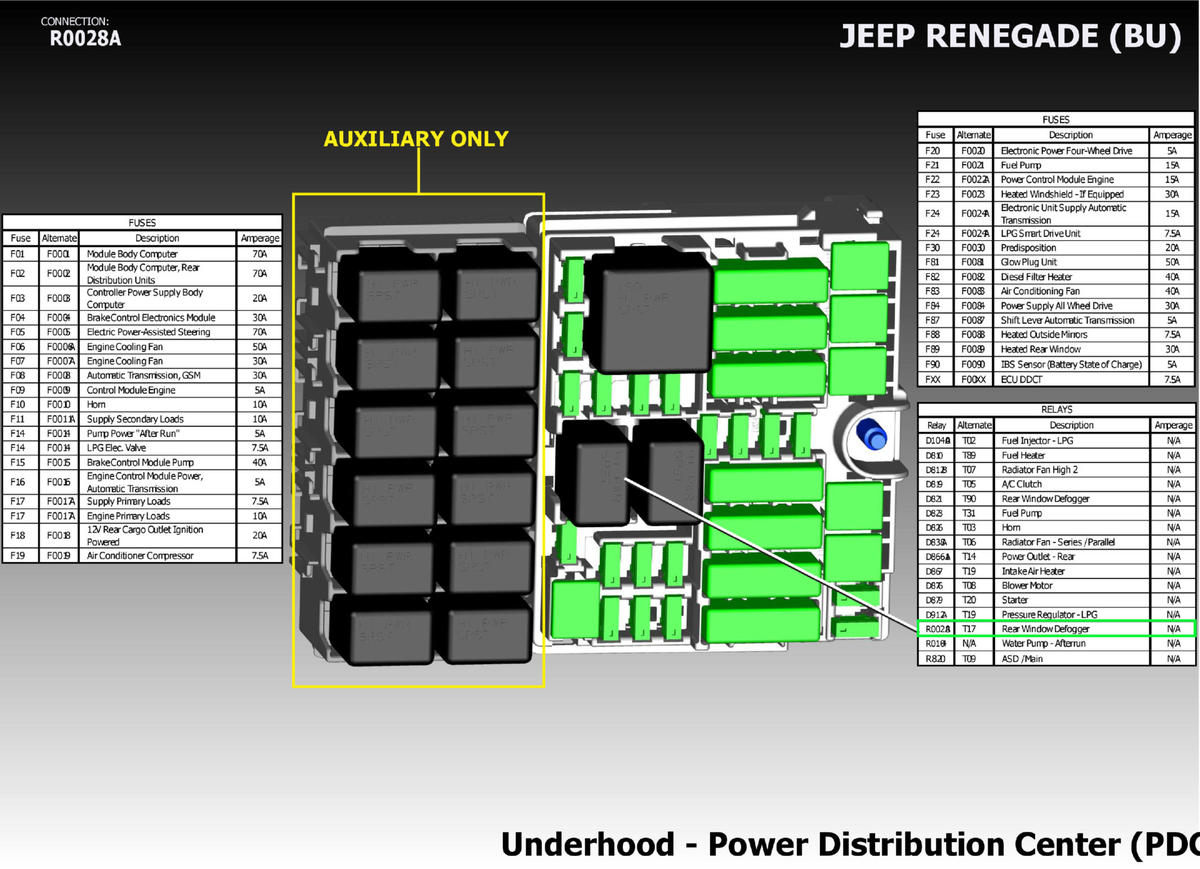

Fig 2: Relay-Rear Window Defogger Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A901

FUSED B(+)

N/A

C115

DEFOGGER RELAY CONTROL

N/A

F741

FUSED IGNITION RUN/START

N/A

A901

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
