Bottle, Coolant Recovery: Installation: 5.7L/6.4L

Courtesy of CHRYSLER GROUP, LLC

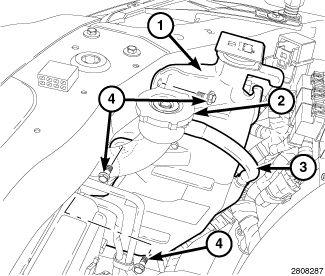

1. Position recovery bottle (1) into vehicle.
2. Install mounting nuts (4). Tighten to 10 N.m (89 in. lbs.).
3. Install the overflow tube (3) to the radiator neck (2).
