Cooler, Power Steering: Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

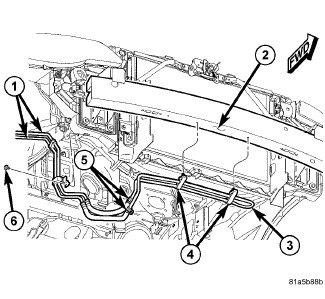

- Install the power steering fluid cooler line (3) to the bumper reinforcement (2) by installing the two cooler mounting push pins (4).
- Install the fluid return hoses (1) on the cooler line (3). Install the hose clamps (5) on the hoses past the bead formed into the end of the cooler tube and secure in place.
- Install the lower fascia valance.
- If equipped, install the belly pan below the engine.
- Lower the vehicle.
- Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
- Check for leaks.
