Bottle, Pressurized Coolant: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

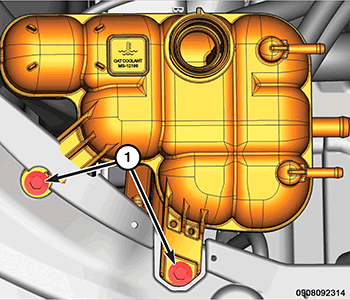

1. Install the pressurized coolant bottle and tighten the bolts (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

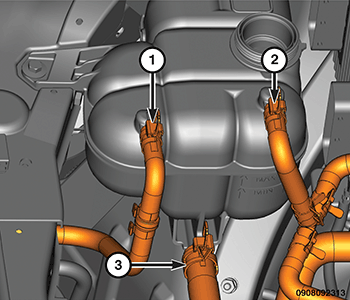

2. Install the coolant outlet hose (3).
3. Install the coolant inlet hose (2).
4. Remove the coolant vent hose (1).

   Courtesy of CHRYSLER GROUP, LLC

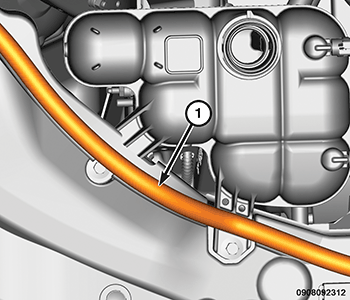

5. Install the hood seal (1).
6. Fill the cooling system. Refer to STANDARD PROCEDURE .
