3.0L Diesel

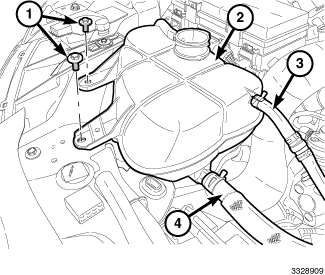

GC0146725Courtesy of CHRYSLER GROUP, LLC
  1. Position the coolant recovery bottle (2).
  2. Install the coolant supply hose (4).
  3. Install coolant recovery bottle bolts (1) and tighten to 10 N.m (89 in. lbs.).
  4. Install the coolant return hose (3)
  5. Fill the cooling system. Refer to STANDARD PROCEDURE .
  6. Install coolant recovery bottle pressure cap.
