Sensor, Knock: Installation: 2.4L
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always torque knock sensors to the correct torque specification. Over or under tightening effects knock sensor performance. Ensure the electrical connector orientation is at the sic O'clock position to the engine block.

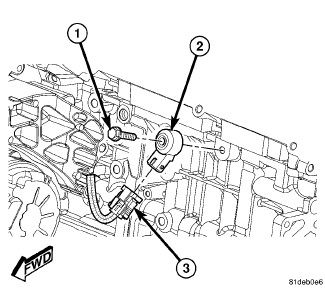

- Install knock sensor (2) and bolt (1) to engine block. Tighten bolt to 20 N.m (15 ft. lbs.).
- Connect electrical connector (3) to knock sensor (2).
- Connect negative battery cable, tighten nut to 4.5 N.m (40 in. lbs.).
