Module-Transmission Control C1 (CVT) (D3855A)

Harness-Family: Body

Color: WHITE

Gender: FEMALE

Part Number: 316371-1

Part Description: Not Available

Connector No: D3855A

Option: CVT

Repair Kit Part Number: Not Available

Cavity Count: null

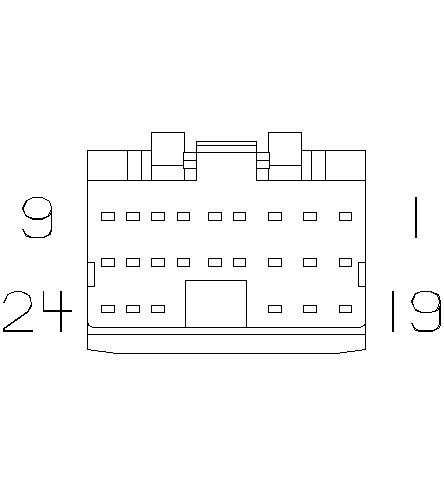

Fig 1: Module-Transmission Control C1 Connector End View (CVT)

Courtesy of CHRYSLER

Fig 2: Module-Transmission Control C1 Component Location (CVT)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T20

DG/LB

0.50

L/R CONTROL

N/A

T19

YL/DB

0.50

2-4 CONTROL

N/A

T59

YL/LB

0.50

UD CONTROL

N/A

T60

YL/GY

0.50

OD CONTROL

N/A

D65

WT/BK

0.35

CAN C (+)

N/A

D64

WT/LB

0.35

CAN C (-)

N/A

T16

YL/OR

0.80

TRANSMISSION CONTROL OUTPUT

N/A

T314

LB/YL

0.50

TRANSFER CASE RANGE POSITION SIGNAL

N/A

T315

YL/OR

0.50

SHIFT MOTOR CONTROL A

N/A

T302

DG/BR

0.50

CLOCK SELECT

N/A

T313

YL/LG

0.50

MODE SENSOR SIGNAL

N/A

T327

GY/YL

0.50

DATA IN/OUT SELECT

N/A

T41

YL/BK

0.50

TRS T41 SIGNAL

N/A

T16

YL/OR

0.80

TRANSMISSION CONTROL OUTPUT

N/A

T316

YL/WT

0.50

SHIFT MOTOR CONTROL B

N/A

T317

TN/YL

0.50

STEP MOTOR CONTROL D

N/A

T42

DG/PK

0.50

TRS T42 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
