Module-Powertrain Control C3 (D3838C)

Harness-Family: HDLP_Dash

Color: NA

Gender: FEMALE

Part Number: 7009-5433-02

Part Description: Not Available

Connector No: D3838C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

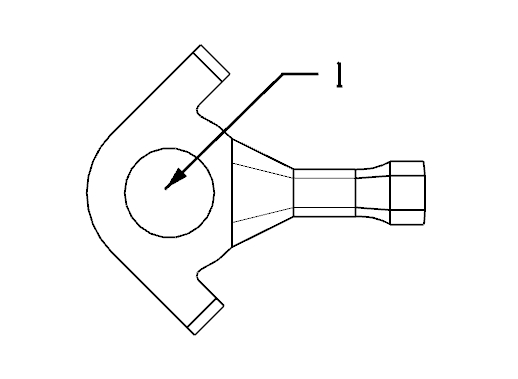

Fig 1: Module-Powertrain Control C3 Connector End View

Courtesy of CHRYSLER

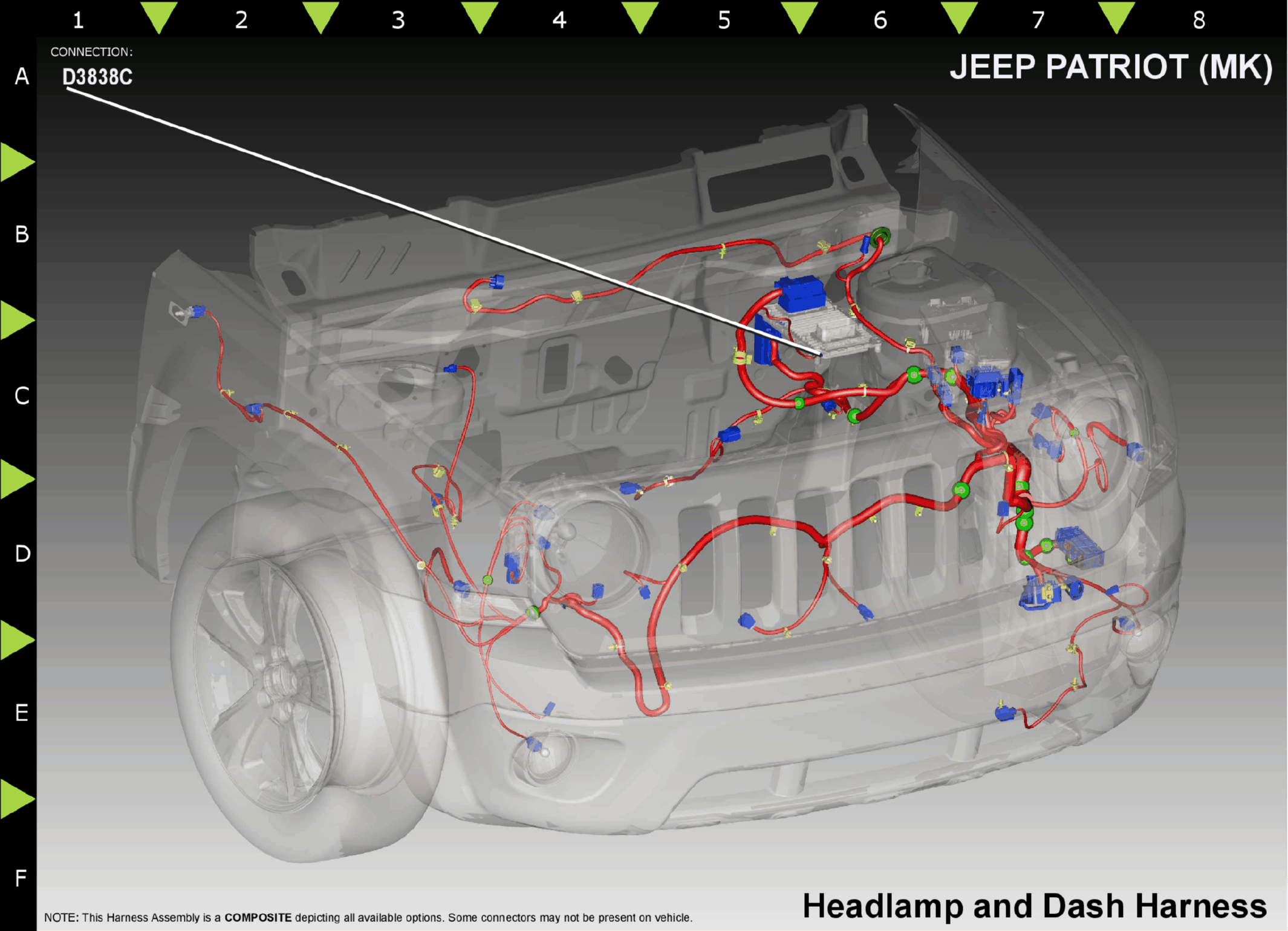

Fig 2: Module-Powertrain Control C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z905

0.80

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
