Module-Powertrain Control C2 (D3838B)

Harness-Family: Powertrain

Color: BROWN

Gender: FEMALE

Part Number: 1924944-4

Part Description: --

Connector No: D3838B

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: 96

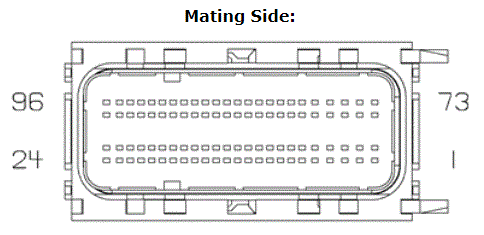

Fig 1: Module-Powertrain Control C2 Connector End View
G00673868Courtesy of CHRYSLER

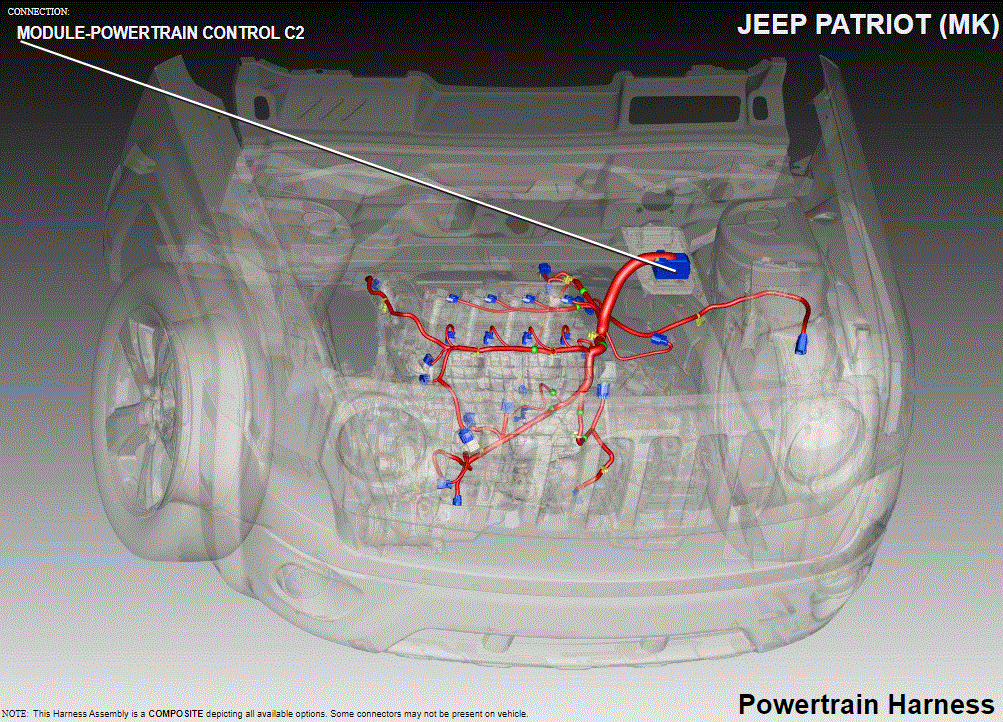

Fig 2: Module-Powertrain Control C2 Component Location
G00673872Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K19 DB/DG 16 COIL CONTROL 1 N/A
2 K20 BR/GY 0.50 GEN FIELD CONTROl N/A
3 K124 DB/GY 0.50 ETC MOTOR (+) N/A
4 K126 DB/LB 0.50 ETC MOTOR (-) N/A
8 K11 BR/YL 0.50 INJECTOR CONTROL 1 N/A
9 K12 BR/DB 0.50 INJECTOR CONTROL 2 N/A
10 K13 BR/LB 0.50 INJECTOR CONTROL 3 N/A
11 K14 BR/TN 0.50 INJECTOR CONTROL 4 N/A
12 K2 VT/OR 0.50 ECT SIGNAL N/A
14 K42 DB/YL 0.50 KS 1 SIGNAL N/A
16 G24 VT/BR 0.50 EOT SIGNAL N/A
17 K21 DB/LG 0.50 IAT SIGNAL N/A
18 K904 DB/DG 0.50 O2 RETURN (DOWNSTREAM) N/A
19 K902 BR/DG 0.80 O2 RETURN (UPSTREAM) N/A
22 K276 DB/WT 0.50 VVT EXHAUST CONTROL N/A
23 K76 BR/WT 0.50 VVT INTAKE CONTROL N/A
24 K99 BR/LG 0.50 O2 1/1 HEATER CONTROL N/A
25 K17 DB/TN 16 COIL CONTROL 2 N/A
38 K942 BR/LG 0.50 KS 1 RETURN N/A
40 A804 RD/VT 0.50 GEN SENSE N/A
43 K141 DB/YL 0.50 O2 1/2 SIGNAL N/A
44 K41 DB/LB 0.80 O2 1/1 SIGNAL N/A
45 K1 VT/BR 0.50 MAP SIGNAL N/A
48 K299 BR/RD 0.50 O2 1/2 HEATER CONTROL SUPPLY N/A
49 K18 DB/OR 16 COIL CONTROL 3 N/A
62 K44 DB/GY 0.50 CMP SIGNAL N/A
65 K922 BR/DB 0.50 TP SENSOR RETURN N/A
66 K900 DB/DG 0.50 SENSOR GROUND N/A
67 F855 PK/YL 0.50 5 VOLT SUPPLY N/A
73 K15 DB/GY 16 COIL CONTROL 4 N/A
84 G6 VT/GY 0.50 OIL PRESSURE SIGNAL N/A
85 K441 DB/BR 0.50 CMP SIGNAL N/A
86 K24 BR/LB 0.50 CKP SIGNAL N/A
87 F856 YL/PK 0.50 5 VOLT SUPPLY N/A
88 K925 DB/GY 0.50 CKP GROUND N/A
89 K22 BR/OR 0.50 TP 1 SIGNAL N/A
90 K122 BR/DG 0.50 TP 2 SIGNAL N/A
92 C27 LB/WT 0.50 A/C COMPRESSOR CONTROL N/A
(1) Pins not listed are not used for this connector


Harness-Family: Powertrain

Color: BROWN

Gender: FEMALE

Part Number: 1924779-1_1924944-6

Part Description: --

Connector No: D3838B

Option: 2.4L

Repair Kit Part Number: Not Available

Cavity Count: 96

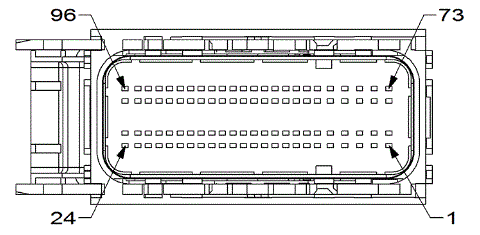

Fig 1: Module-Powertrain Control C2 Connector End View
G00673876Courtesy of CHRYSLER
Fig 2: Module-Powertrain Control C2 Component Location
G00673872Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K19 DB/DG 16 COIL CONTROL 1 N/A
2 K20 BR/GY 0.50 GEN FIELD CONTROl N/A
3 K124 DB/GY 0.50 ETC MOTOR (+) N/A
4 K126 DB/LB 0.50 ETC MOTOR (-) N/A
8 K11 BR/YL 0.50 INJECTOR CONTROL 1 N/A
9 K12 BR/DB 0.50 INJECTOR CONTROL 2 N/A
10 K13 BR/LB 0.50 INJECTOR CONTROL 3 N/A
11 K14 BR/TN 0.50 INJECTOR CONTROL 4 N/A
12 K2 VT/OR 0.50 ECT SIGNAL N/A
14 K42 DB/YL 0.50 KS 1 SIGNAL N/A
16 G24 VT/BR 0.50 EOT SIGNAL N/A
17 K21 DB/LG 0.50 IAT SIGNAL N/A
18 K904 DB/DG 0.50 O2 RETURN (DOWNSTREAM) N/A
19 K902 BR/DG 0.80 O2 RETURN (UPSTREAM) N/A
22 K276 DB/WT 0.50 VVT EXHAUST CONTROL N/A
23 K76 BR/WT 0.50 VVT INTAKE CONTROL N/A
24 K99 BR/LG 0.50 O2 1/1 HEATER CONTROL N/A
25 K17 DB/TN 16 COIL CONTROL 2 N/A
28 K601 BR/VT 0.50 EGR AIR FLOW CONTROL N/A
38 K942 BR/LG 0.50 KS 1 RETURN N/A
40 A804 RD/VT 0.50 GEN SENSE N/A
43 K141 DB/YL 0.50 O2 1/2 SIGNAL N/A
44 K41 DB/LB 0.80 O2 1/1 SIGNAL N/A
45 K1 VT/BR 0.50 MAP SIGNAL N/A
46 K602 YL/DB 0.50 MFV SIGNAL N/A
48 K299 BR/RD 0.50 O2 1/2 HEATER CONTROL SUPPLY N/A
49 K18 DB/OR 16 COIL CONTROL 3 N/A
62 K44 DB/GY 0.50 CMP SIGNAL N/A
65 K922 BR/DB 0.50 TP SENSOR RETURN N/A
66 K900 DB/DG 0.50 SENSOR GROUND N/A
67 F855 PK/YL 0.50 5 VOLT SUPPLY N/A
73 K15 DB/GY 16 COIL CONTROL 4 N/A
84 G6 VT/GY 0.50 OIL PRESSURE SIGNAL N/A
85 K441 DB/BR 0.50 CMP SIGNAL N/A
86 K24 BR/LB 0.50 CKP SIGNAL N/A
87 F856 YL/PK 0.50 5 VOLT SUPPLY N/A
88 K925 DB/GY 0.50 CKP GROUND N/A
89 K22 BR/OR 0.50 TP 1 SIGNAL N/A
90 K122 BR/DG 0.50 TP 2 SIGNAL N/A
92 C27 LB/WT 0.50 A/C COMPRESSOR CONTROL N/A
(1) Pins not listed are not used for this connector
