Module-Powertrain Control C1 (D3838A)

Harness-Family: HDLP_Dash

Color: GRAY

Gender: FEMALE

Part Number: 1924940-7

Part Description: Not Available

Connector No: D3838A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

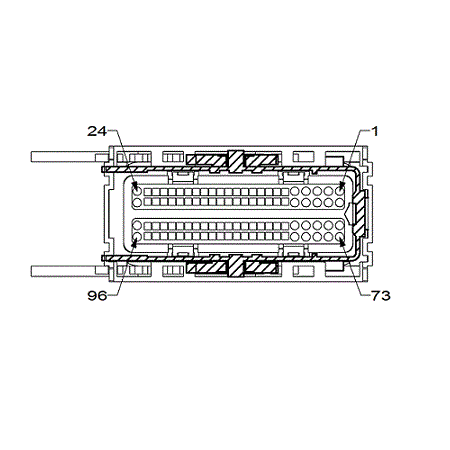

Fig 1: Module-Powertrain Control C1 Connector End View
GCWD1130942Courtesy of CHRYSLER

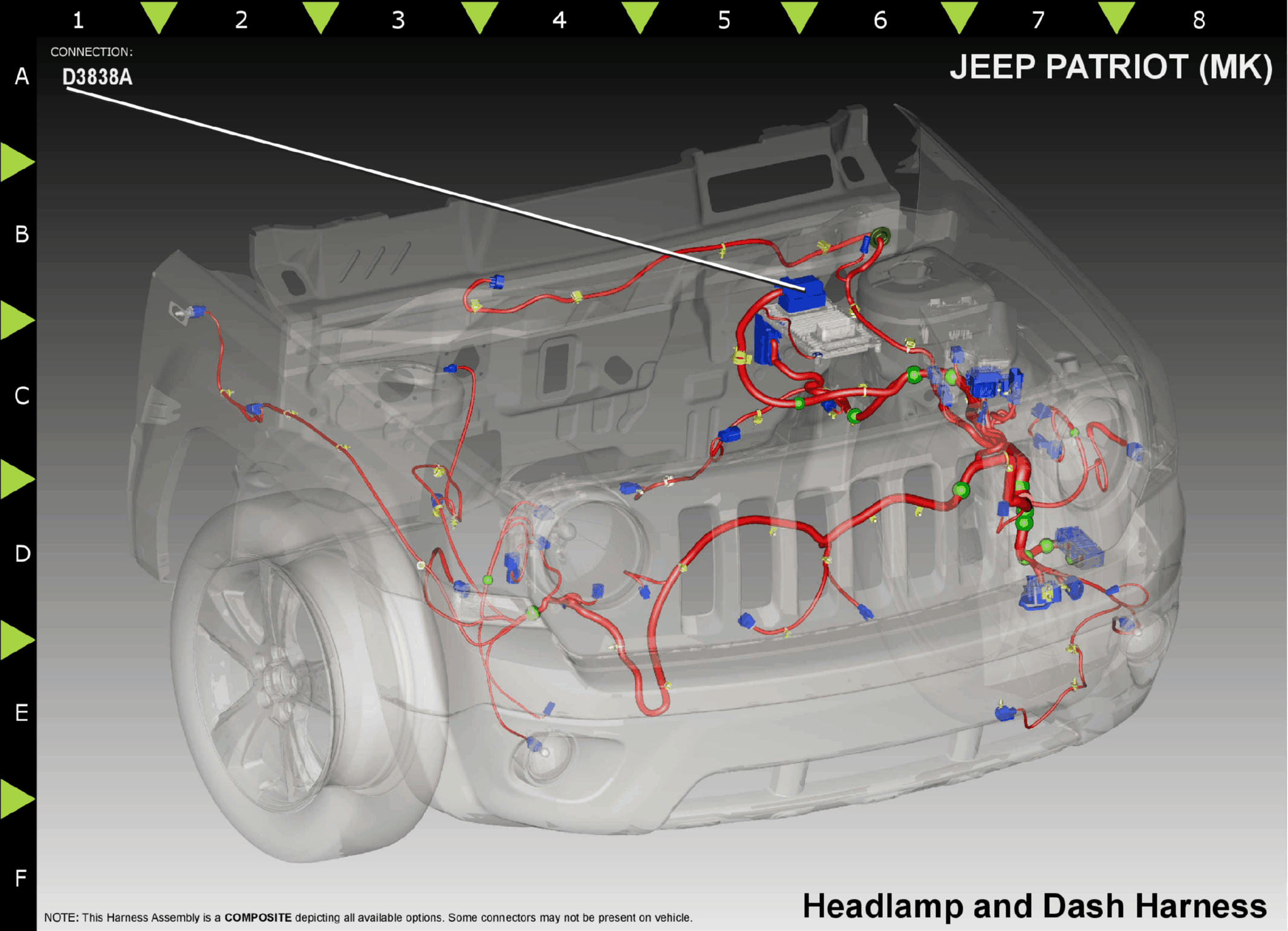

Fig 2: Module-Powertrain Control C1 Component Location
GCWD1160800Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
17 B16 LB/DG 0.50 BRAKE SIGNAL 2 N/A
18 V72 OR/VT 0.50 S/C SIGNAL 2 N/A
19 V71 VT/OR 0.50 S/C SIGNAL 1 N/A
22 K915 BR/WT 0.50 SENSOR GROUND N/A
23 F202 PK/GY 0.80 IGNITION RUN/START CONTROL OUTPUT N/A
33 D64 WT/LB 0.50 CAN C (-) N/A
41 B15 DG/WT 0.50 BRAKE SIGNAL 1 N/A
43 V937 VT/BR 0.50 S/C SWITCH GROUND N/A
48 K856 BR/YL 0.50 5 VOLT SUPPLY N/A
52 Z905 BK 12 GROUND N/A
53 Z905 BK 16 GROUND N/A
54 K975 BR/OR 0.50 SIGNAL RETURN N/A
57 D65 WT/LG 0.50 CAN C (+) N/A
65 K70 DB/BR 0.50 EVAP PURGE SOL SIGNAL N/A
67 K400 BR/VT 0.50 APP SENSOR GROUND 2 N/A
68 K167 BR/YL 0.50 APP SENSOR GROUND 1 N/A
69 K854 VT/BR 0.50 5 VOLT SUPPLY N/A
70 K107 VT/WT 0.50 ESM SIGNAL N/A
72 Z909 BK 16 GROUND N/A
74 F342 BR/WT 16 ASD CONTROL OUTPUT N/A
75 F342 BR/WT 16 ASD CONTROL OUTPUT N/A
76 F342 BR/WT 16 ASD CONTROL OUTPUT N/A
80 K51 BR/WT 0.50 ASD RELAY CONTROL N/A
81 T752 DG/OR 0.50 STARTER RELAY CONTROL N/A
84 K31 BR 0.50 FUEL PUMP CONTROL N/A
87 T120 DG/OR 0.50 MTX-CLUTCH INTERLOCK / ATX-PARK NEUTRAL N/A
91 K29 WT/BR 0.50 APP SIGNAL 2 N/A
92 K23 BR/WT 0.50 APP SIGNAL 1 N/A
93 K852 BR/VT 0.50 5 VOLT SUPPLY N/A
94 K52 DB/WT 0.50 EVAP PURGE CONTROL N/A
96 A931 RD 0.50 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
