Module-Electronic Overhead C1 (D6627A)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 12047781

Part Description: 3 WAY INSULATOR

Connector No: D6627A

Option: Standard

Repair Kit Part Number: 68057289AA

Cavity Count: 3

Fig 1: Module-Electronic Overhead C1 Connector End View

Courtesy of CHRYSLER

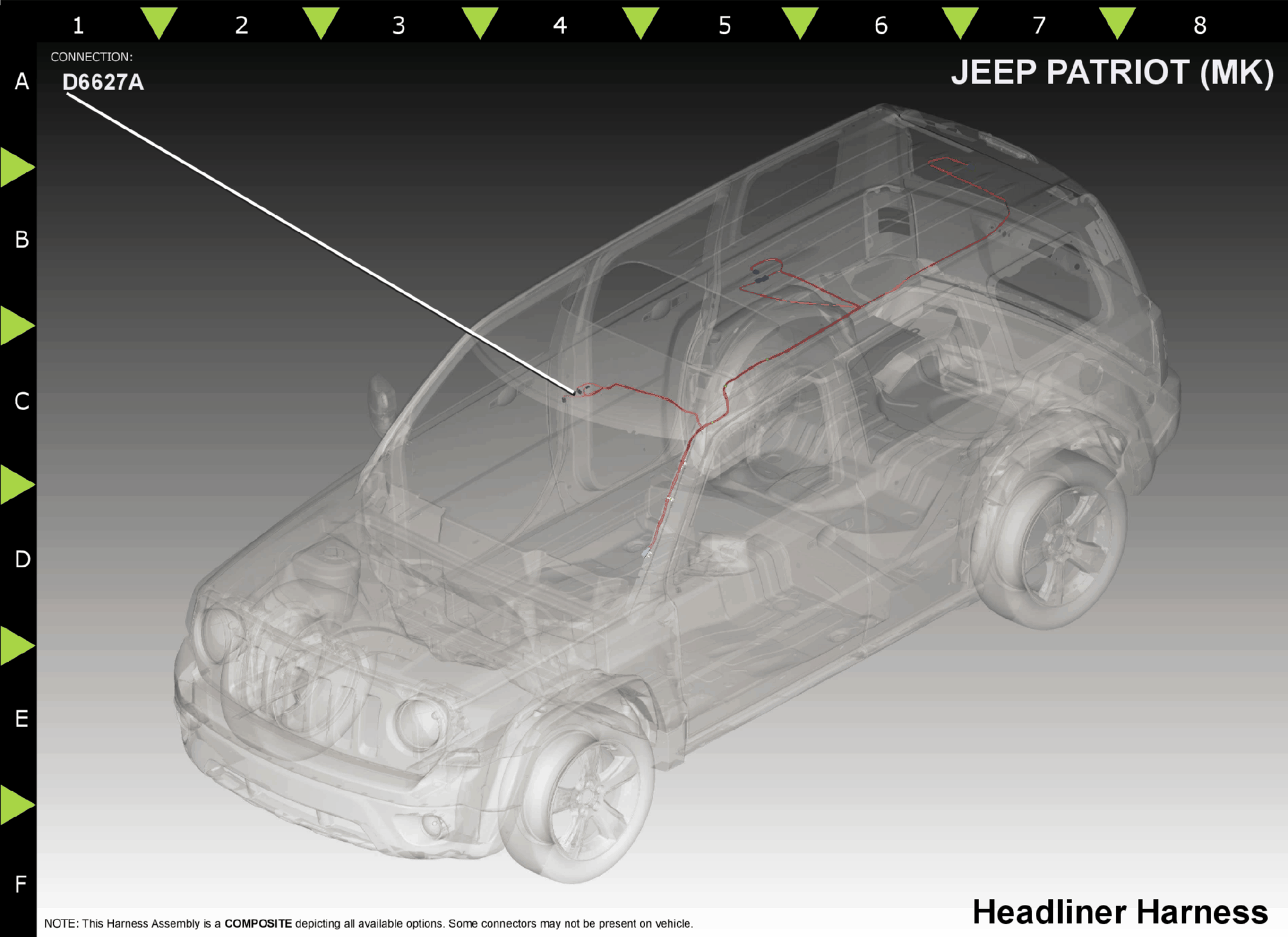

Fig 2: Module-Electronic Overhead C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z911

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
