Module-All Wheel Drive Control (D3918A)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 7283-4261

Part Description: CONNECTOR HOUSING SUB ASSEMBLY

Connector No: D3918A

Option: Standard

Repair Kit Part Number: 68020946AA

Cavity Count: 16

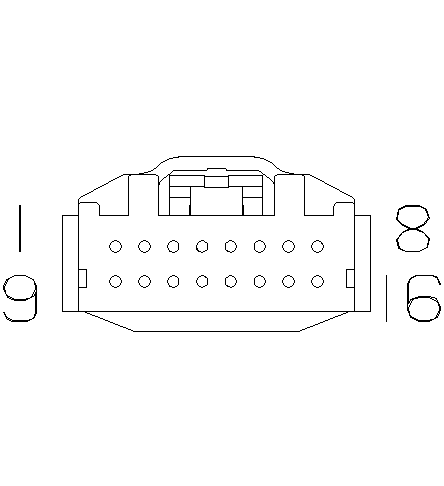

Fig 1: Module-All Wheel Drive Control Connector End View

Courtesy of CHRYSLER

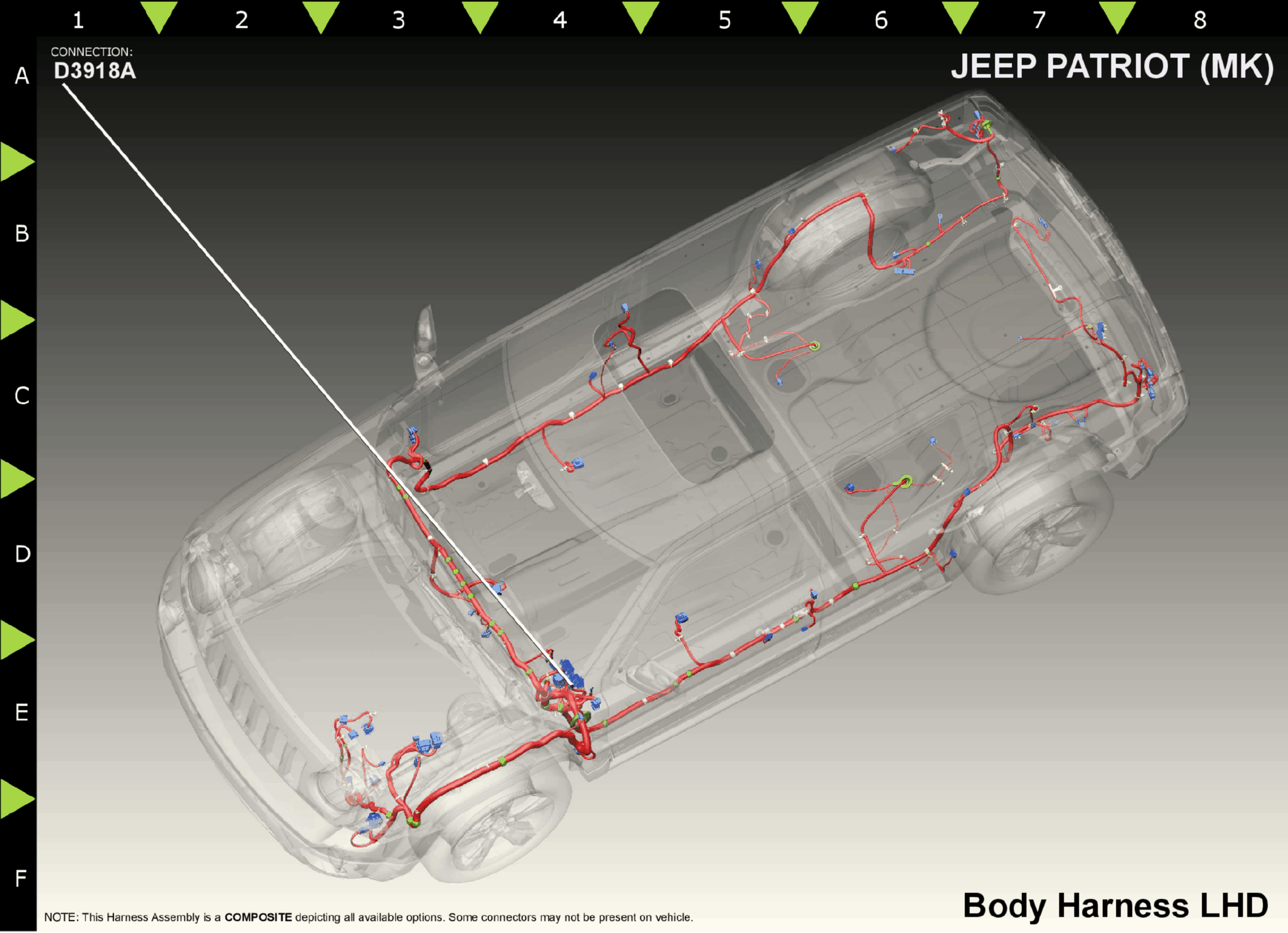

Fig 2: Module-All Wheel Drive Control Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D65

WT/BK

0.50

CAN C (+)

N/A

F202

PK/GY

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

A923

RD/WT

0.50

SWITCHED B(+)

N/A

T312

YL/VT

0.50

REAR DIFFERENTIAL SOLENOID CONTROL

N/A

D64

WT/LB

0.50

CAN C (-)

N/A

Z919

0.50

GROUND

N/A

T78

YL/BK

0.50

SOLENOID SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
