Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1-1534704-5_1534705-5

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

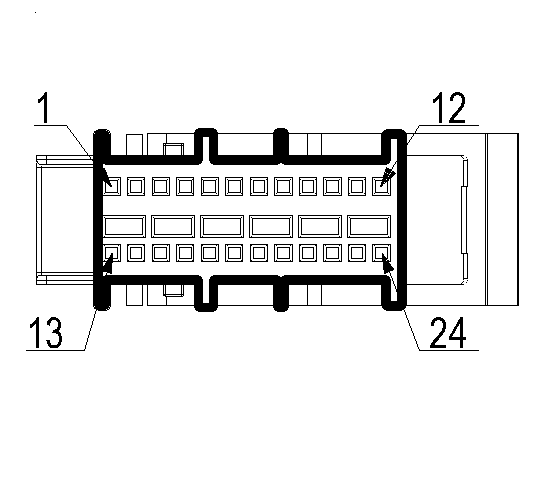

Fig 1: Module-Occupant Restraint Controller C1 Connector End View
GCWD1090969Courtesy of CHRYSLER

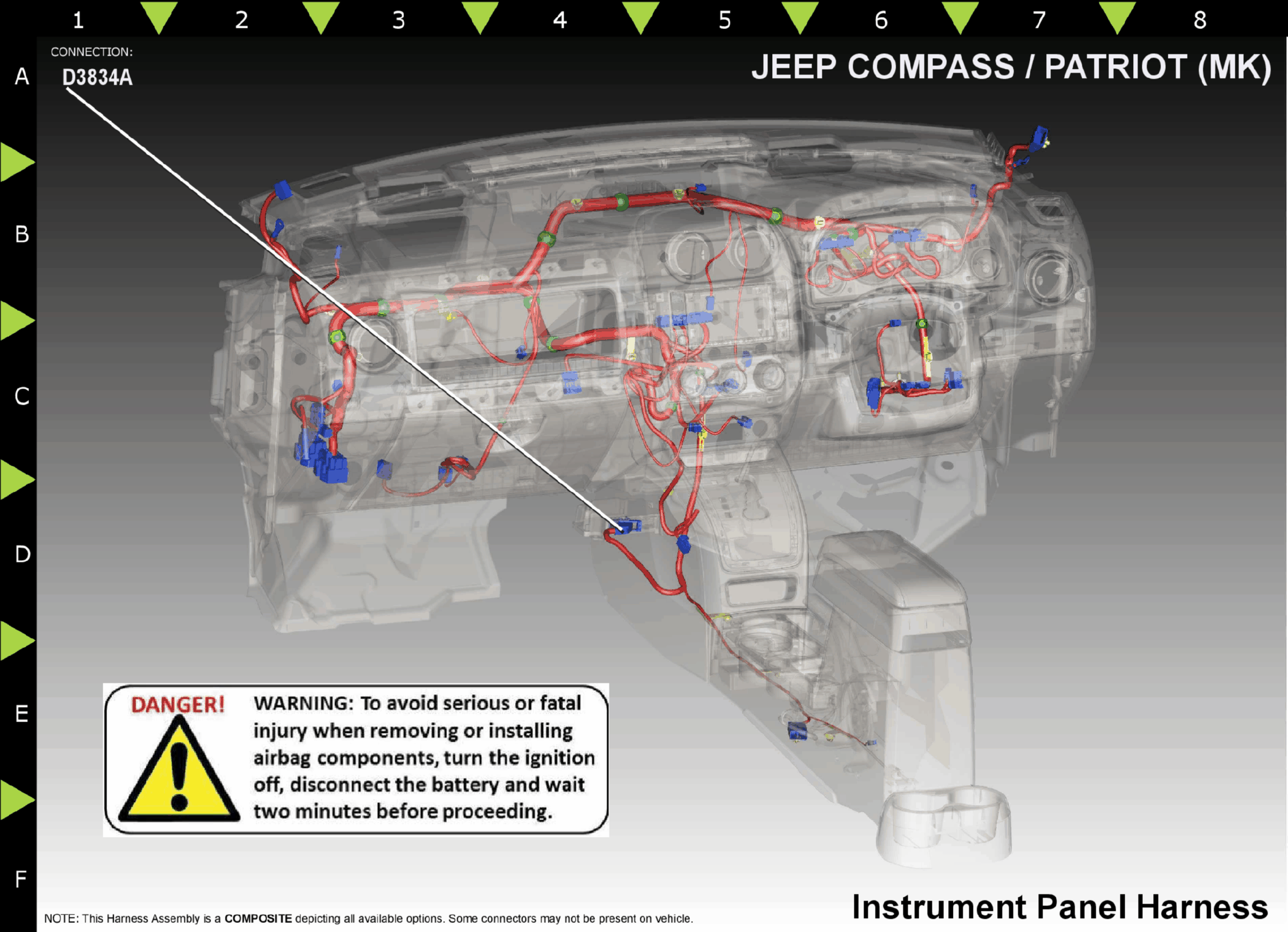

Fig 2: Module-Occupant Restraint Controller C1 Component Location
GCWD1160693Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D55 WH/OR 0.35 CAN B (+) N/A
2 D54 WH/PK 0.35 CAN B (-) N/A
3 R284 LB 0.35 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
4 R283 LB/DG 0.35 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
5 R60 LB/BG 0.50 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
6 R58 LB/GY 0.50 PASSENGER SEAT BELT SWITCH SENSE N/A
7 R261 LB/BG 0.50 DRIVER SEAT POSITION SENSOR DATA N/A
8 R263 LB/BK 0.50 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
9 R80 VT/LB 0.50 RIGHT FRONT IMPACT SENSOR SIGNAL N/A
10 R82 WH/OR 0.50 RIGHT FRONT IMPACT SENSOR GROUND N/A
11 R81 DG/YL 0.50 LEFT FRONT IMPACT SENSOR GROUND N/A
12 R79 LB/VT 0.50 LEFT FRONT IMPACT SENSOR SIGNAL N/A
13 R43 LB/BR 0.50 DRIVER SQUIB 1 LINE 2 N/A
14 R45 LG/OR 0.50 DRIVER SQUIB 1 LINE 1 N/A
15 R44 GY/OR 0.50 PASSENGER SQUIB 1 LINE 1 N/A
16 R42 DG/BR 0.50 PASSENGER SQUIB 1 LINE 2 N/A
17 R61 LG/VT 0.50 DRIVER SQUIB 2 LINE 2 N/A
18 R63 DB/WT 0.50 DRIVER SQUIB 2 LINE 1 N/A
19 R64 LB/WH 0.50 PASSENGER SQUIB 2 LINE 1 N/A
20 R62 LB/VT 0.50 PASSENGER SQUIB 2 LINE 2 N/A
(1) Pins not listed are not used for this connector
