Module-Electronic Overhead C2 (D6627B)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 12047785

Part Description: Not Available

Connector No: D6627B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Module-Electronic Overhead C2 Connector End View
GCWD1090480Courtesy of CHRYSLER

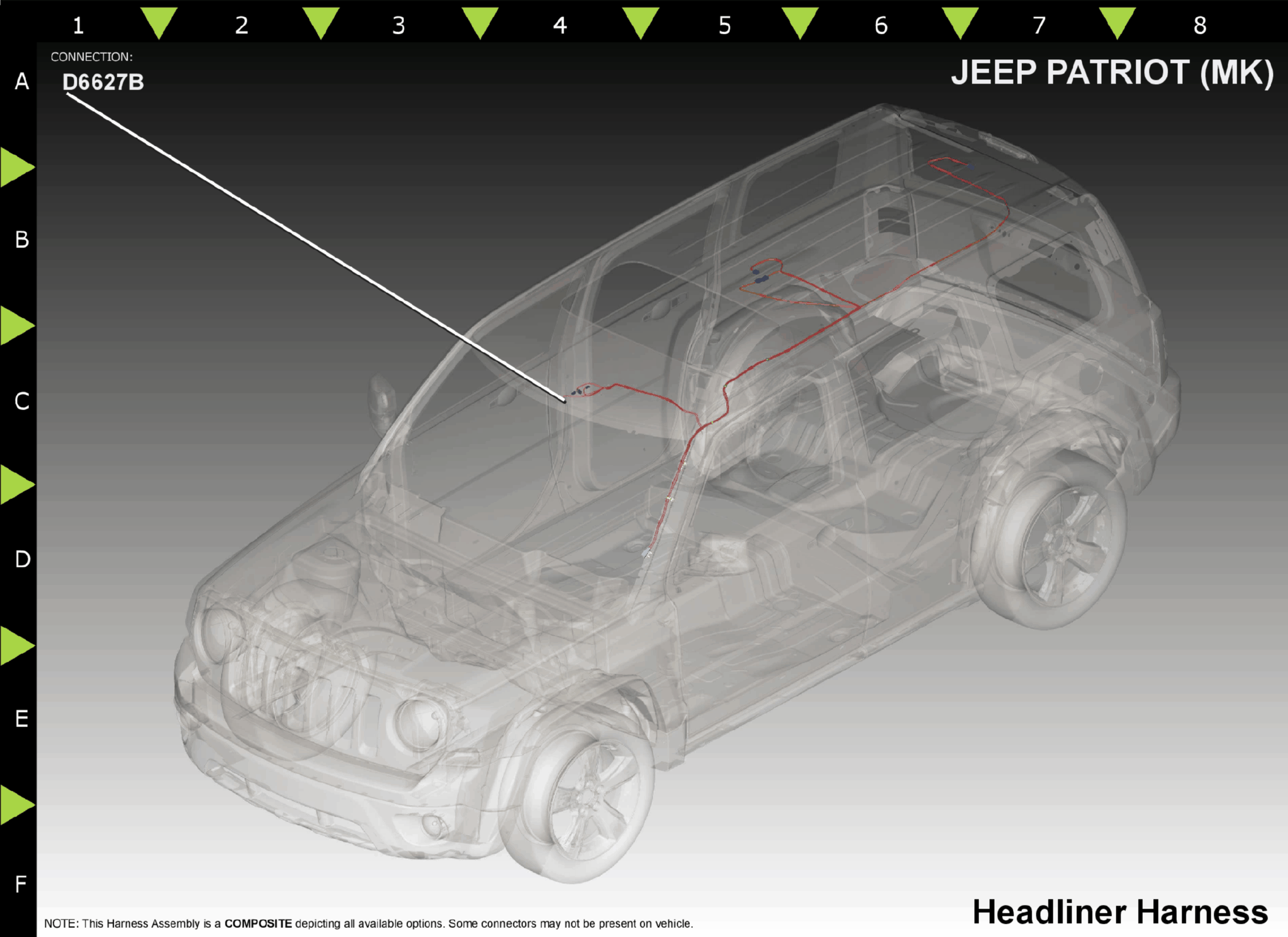

Fig 2: Module-Electronic Overhead C2 Component Location
GCWD1211941Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
C Q3 OG/BG 0.35 SUNROOF OPEN SWITCH SENSE N/A
A Q4 OG/YE 0.35 SUNROOF VENT SWITCH SENSE N/A
D Q5 OG/BU 0.35 SUNROOF CLOSE SWITCH SENSE N/A
B Q6 OG/GN 0.35 SUNROOF SWITCH SUPPLY N/A
(1) Pins not listed are not used for this connector
