Home >> Jeep >> 2017 >> Compass Trailhawk >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> (Memory Seats Module (Driver) (MSMD) - Electrical Diagnostics) - Mp >> DTC Troubleshooting >> B1D5E-13-Power Seat Switch - Circuit Open >> Notes

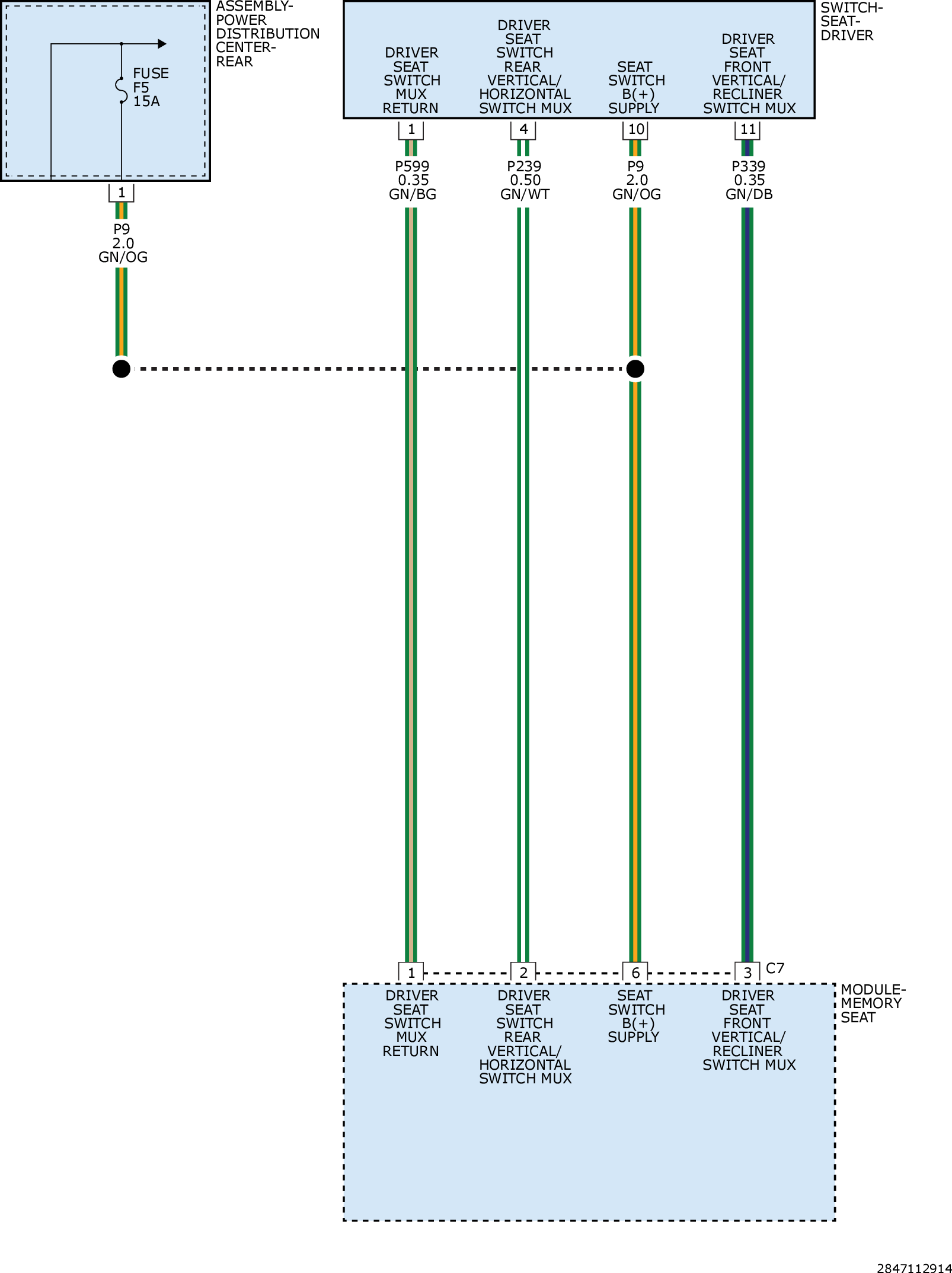

B1D5E-13-Power Seat Switch - Circuit Open: Notes

GC0180470

Courtesy of CHRYSLER GROUP, LLC
