Home >> Jeep >> 2017 >> Compass Trailhawk >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> (Emergency Assistance Module (EAM/TBM) - Electrical Diagnostics) - Mp >> DTC Troubleshooting >> B1555-13 - Emergency Call Button Backlight Led Control-Circuit Open >> Notes

B1555-13 - Emergency Call Button Backlight Led Control-Circuit Open: Notes

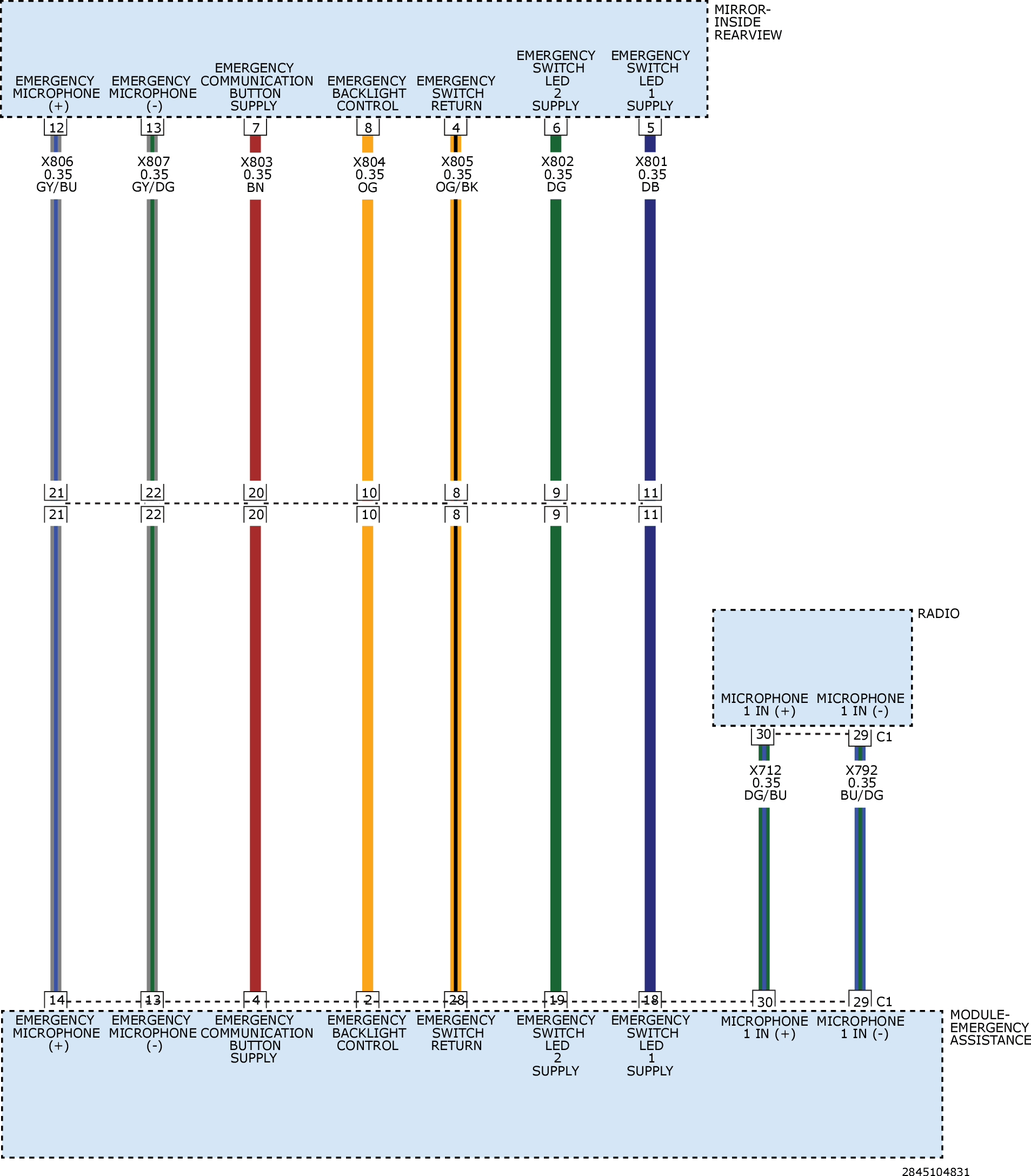

GC0180228

Courtesy of CHRYSLER GROUP, LLC
