Home >> Jeep >> 2017 >> Compass Limited >> Repair and Diagnosis (Single Page) >> Body & Frame >> Towing Systems >> (Trailer Tow Module - Electrical Diagnostics) - Mp >> DTC Troubleshooting >> B17AD-11-Rear Left Trailer Turn Lamp Control - Circuit Short To Ground >> Notes

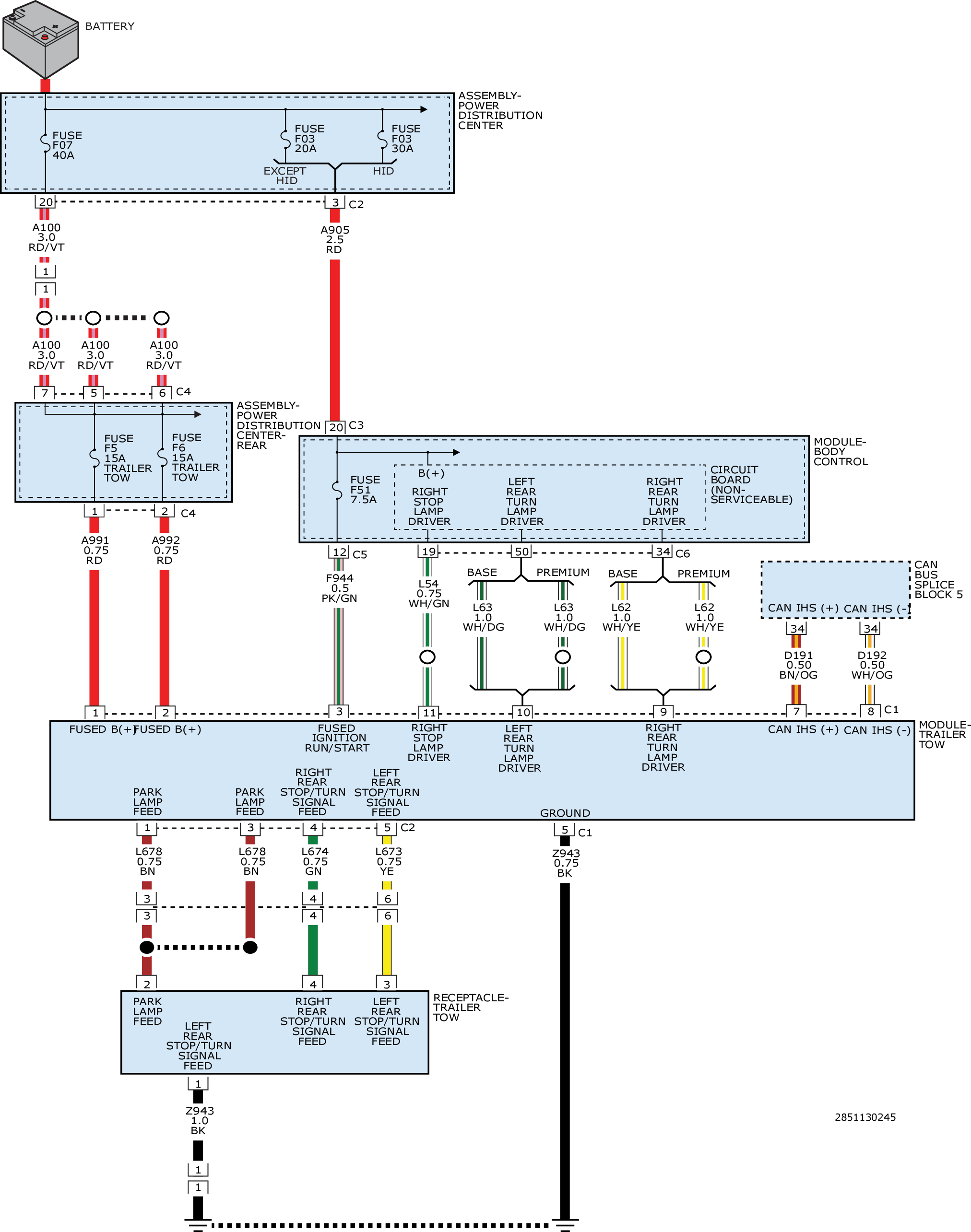

B17AD-11-Rear Left Trailer Turn Lamp Control - Circuit Short To Ground: Notes

GC0180231

Courtesy of CHRYSLER GROUP, LLC
