Plug, Glow: Installation

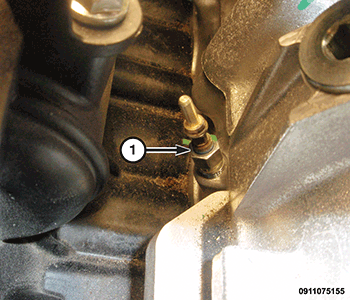

GC0170037Courtesy of CHRYSLER GROUP, LLC
  1. Install the glow plug(s) (1). Tighten the glow plug(s) to the proper. Refer to TECHNICAL SPECIFICATIONS .

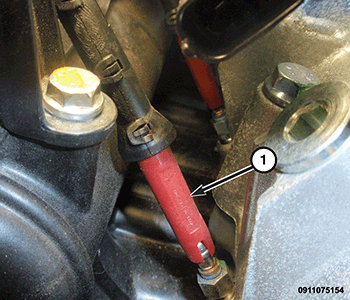

    GC0169960Courtesy of CHRYSLER GROUP, LLC
  2. Connect the glow plug wire harness connector (1).
  3. Install engine cover. Refer to .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
