Home >> Jeep >> 2017 >> Cherokee Trailhawk, 3.2L Eng VIN S >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Injection, Diesel >> Sensor, Oxygen >> Removal >> 2.2L Diesel 1/2

2.2L Diesel 1/2

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
    GC0169996Courtesy of CHRYSLER GROUP, LLC

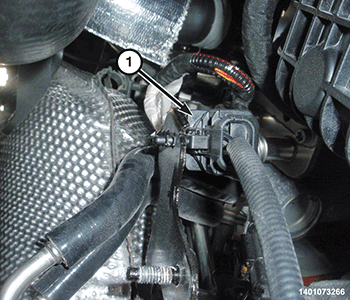

  3. Disconnect the oxygen sensor wire harness connector (1) and remove the wire harness connector from the support bracket.
    GC0169918Courtesy of CHRYSLER GROUP, LLC
  4. Open the retaining clip and remove the wire from clip (1).
    GC0169973Courtesy of CHRYSLER GROUP, LLC

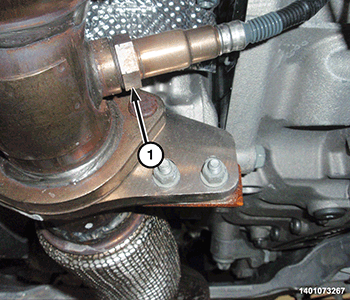

  5. Remove the oxygen sensor (1).
