Module, Wireless Charging Pad: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the tray assembly from the center console.
- Set the end stops to full out positions.

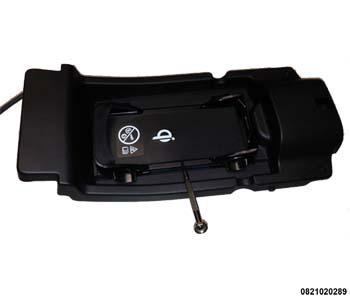

- Using a flathead mini screwdriver gently pry one side of anti-slip mat.

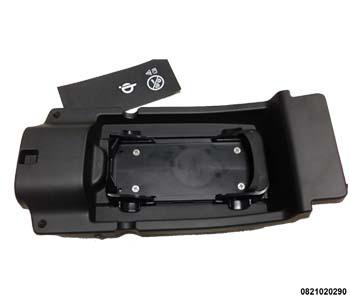

- Proceed to remove the anti slip mat.

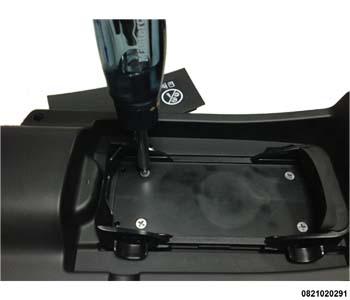

- Remove four screws using a Phillips #2 screwdriver.

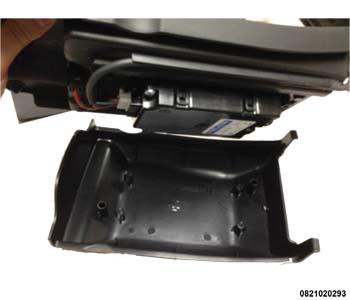

- The bottom cover should be free to come off now.

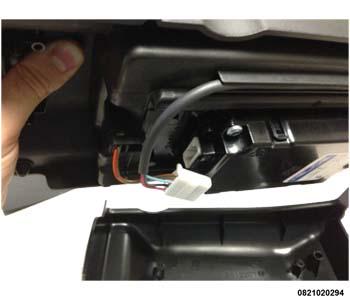

- Remove the Tyco connector to separate the Lower Tray from the Upper tray assembly.

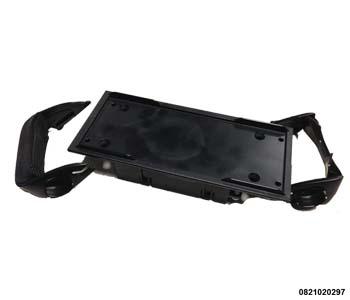

- Remove the rigid and flexible end stops by pressing down on the paddles and sliding them off each side.

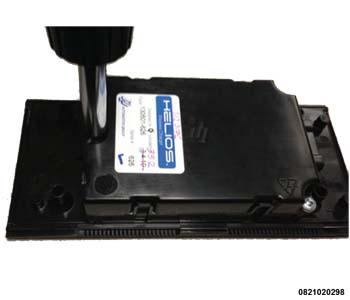

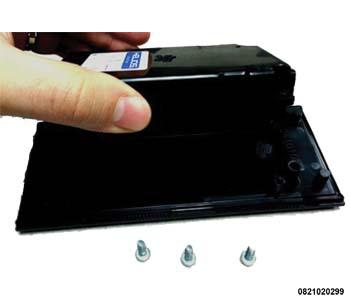

- Remove three screws using the Robertson #S2 screwdriver that secure the wireless charging module to the upper tray.
- The wireless charging module can now be lifted from the tray assembly.
- Using needle nose pliers, squeeze the tabs of the LED lens to pull the Lens out of its nest.

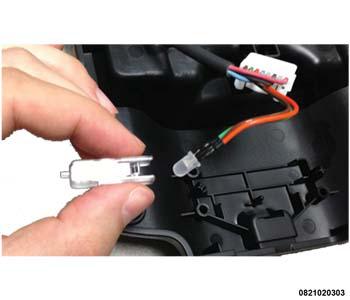

- Squeeze the legs of the LED Lens to pull the LED out from the Lens.

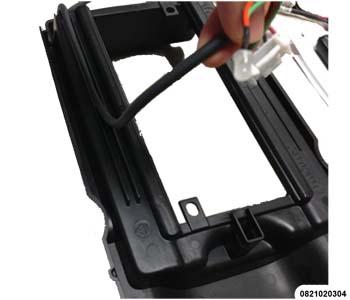

- Peel the harness out of the channel as shown in the illustration.
