Module, Wireless Charging Pad: Installation
- Attach wireless charging module to the upper tray with three screws using #S2 screwdriver.

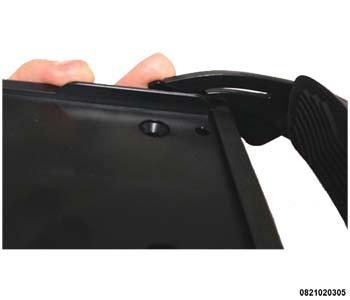

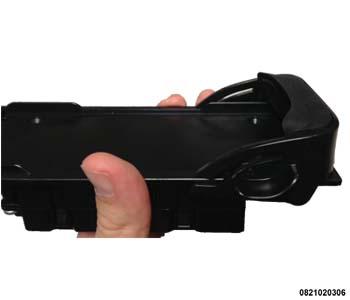

- Attach one end stop by pivoting it into the tray.
- Repeat step 2 to install the other end stop to the tray.

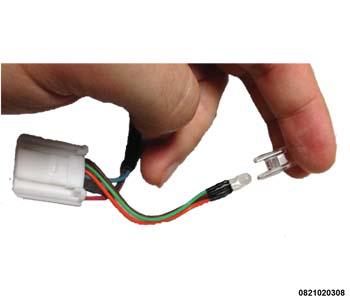

- Insert the LED into the LED lens.

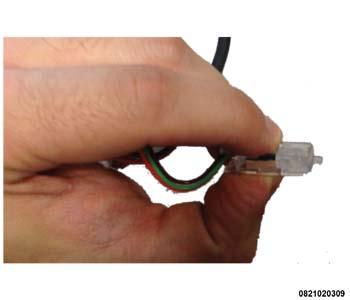

- Squeeze on the LED lens retaining clips to make sure they are engaged. Tug on the LED harness to confirm the LED is seated.

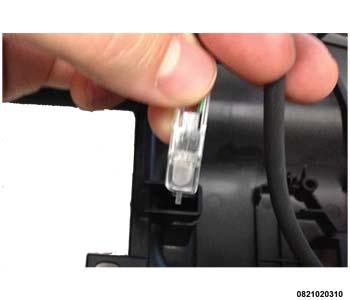

- Insert the LED Lens into the Lower Tray ensuring that the round portion of the Lens faces the opening in the Lower Tray.

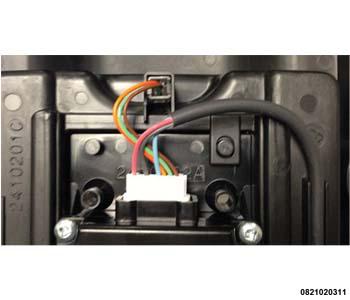

- Place upper tray assembly into lower tray and insert the Tyco connector into module and wire harness in the channel ensuring the routing of the harness mimics the related graphic exactly.

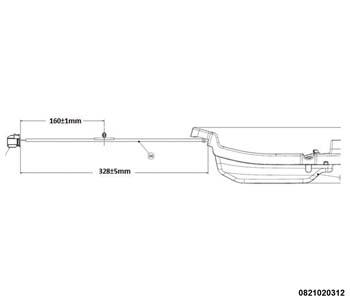

- The distance from the connector to channel entry point has to be 88mm±3mm. The distance from the exit of the tray to connector needs to be exactly 328±5mm.

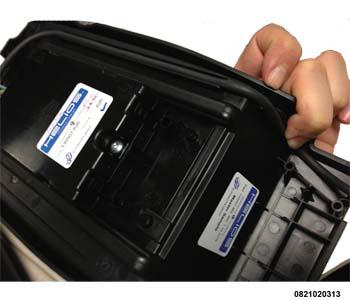

- Ensure also to hold down the harness in the channel at the back of the part while putting on bottom cover.
- Attach bottom cover to upper tray with four screws using Phillips #2 screwdriver.

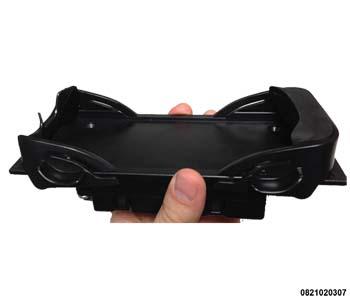

- Ensure end stops are at the full out positions.

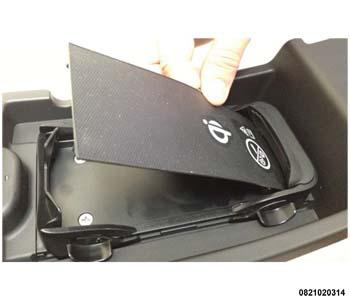

- Wedge the edge of the anti-slip mat under the rigid end stop bumper.
- Slide the Bumper over the mat.

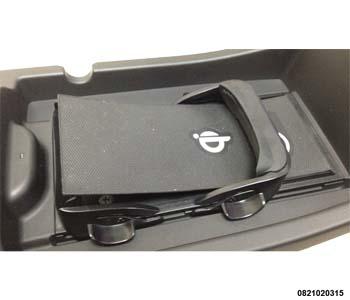

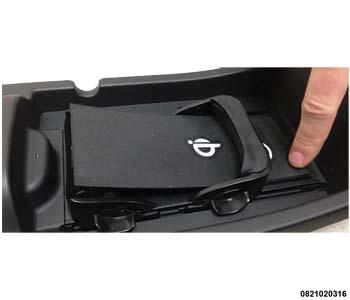

- Push down the two pins into blind bosses.

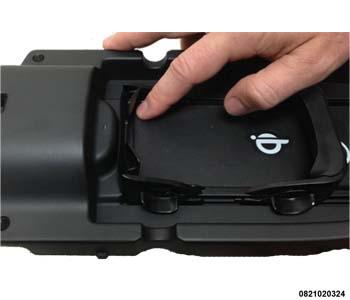

- Push down the two pins on the other side of the mat into blind bosses to fully seat anti slip mat.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
