Injector(S), Fuel: Description

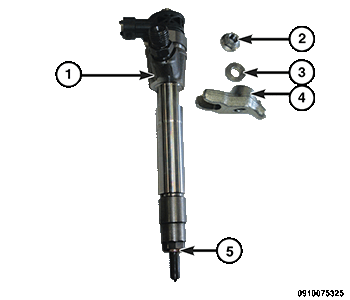

There are four electronically controlled fuel injectors (1) that are located on top of the cylinder head. The fuel injector delivers a fine mist of atomized fuel into the combustion chamber at pressures up to 1600 bar (23.206 psi). Each fuel injector is held in place by a retaining clamp (4), fulcrum (3), and nut (2). The fuel injector uses a copper sealing washer (5) located on the bottom of the fuel injector.
