Module-Rear Driveline

Harness-Family: Under_Body

Color: BLACK

Gender: FEMALE

Part Number: 33471-0501

Part Description: Not Available

Connector No: D2799A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 5

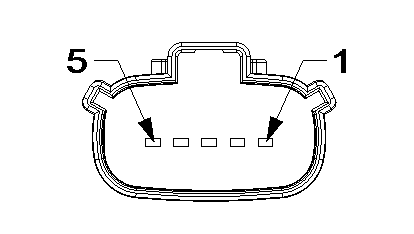

Fig 1: Module-Rear Driveline Connector End View

GCWD1079540

Courtesy of CHRYSLER

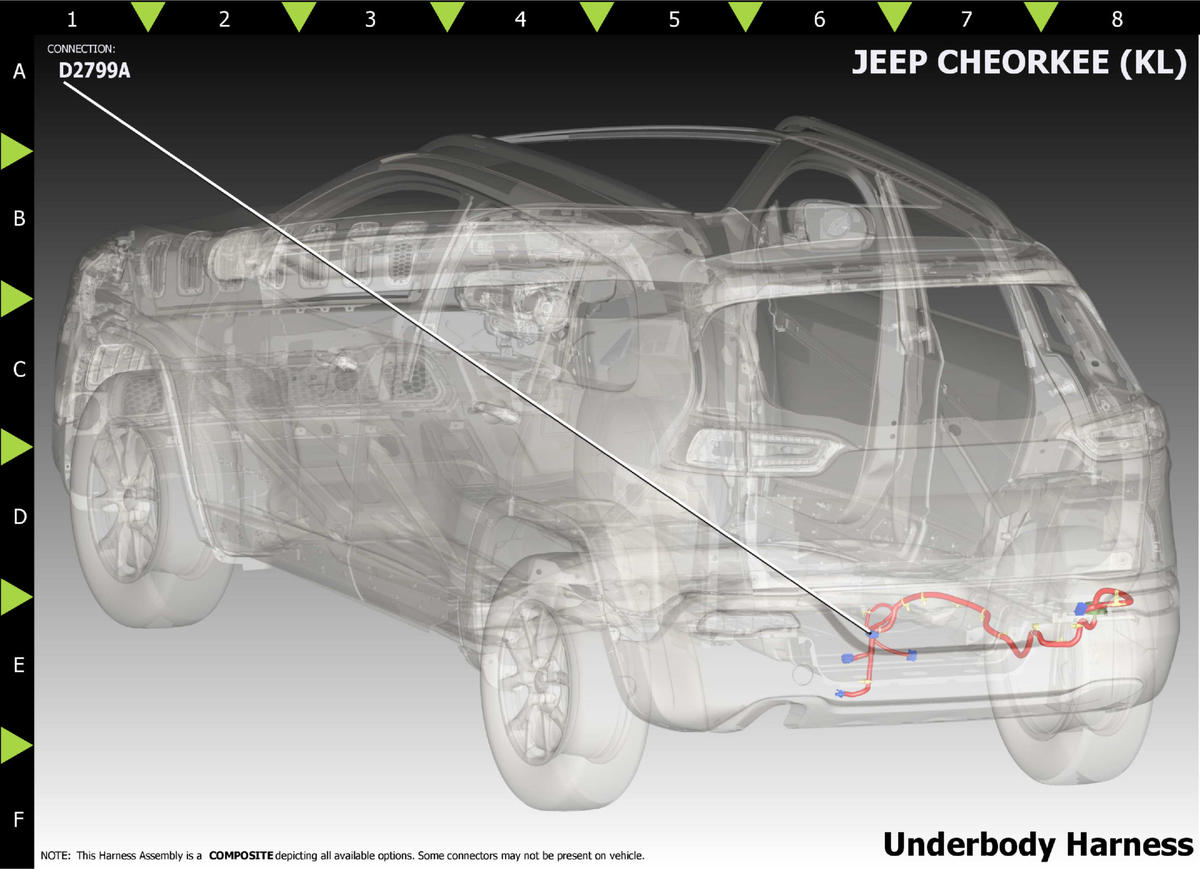

Fig 2: Module-Rear Driveline Component Location

GCWD1219321

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D468

GY/WT

0.50

PRIVATE CAN (-)

N/A

2

D469

GY

0.50

PRIVATE CAN (+)

N/A

3

Z924

BK

0.75

GROUND

N/A

4

A196

RD/DB

0.75

FUSED B(+)

N/A

5

F946

PK/LG

0.35

FUSED IGNITION RUN/START CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
