Sensor, Differential Pressure, 2.0L Diesel: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

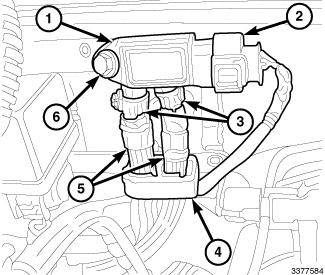

- Install the differential pressure sensor (1) and securely tighten nut (6).
- Connect the two vacuum hoses (5) to the differential pressure sensor (1) and securely tighten the hose clamps (3).
- Engage the retainer clip (4) around the two vacuum hoses (5).
- Connect the differential pressure sensor wire harness connector (2).
- Connect the negative battery cable.
