P0440-General EVAP System Failure
>>
Notes
P0440-General EVAP System Failure: Notes
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.

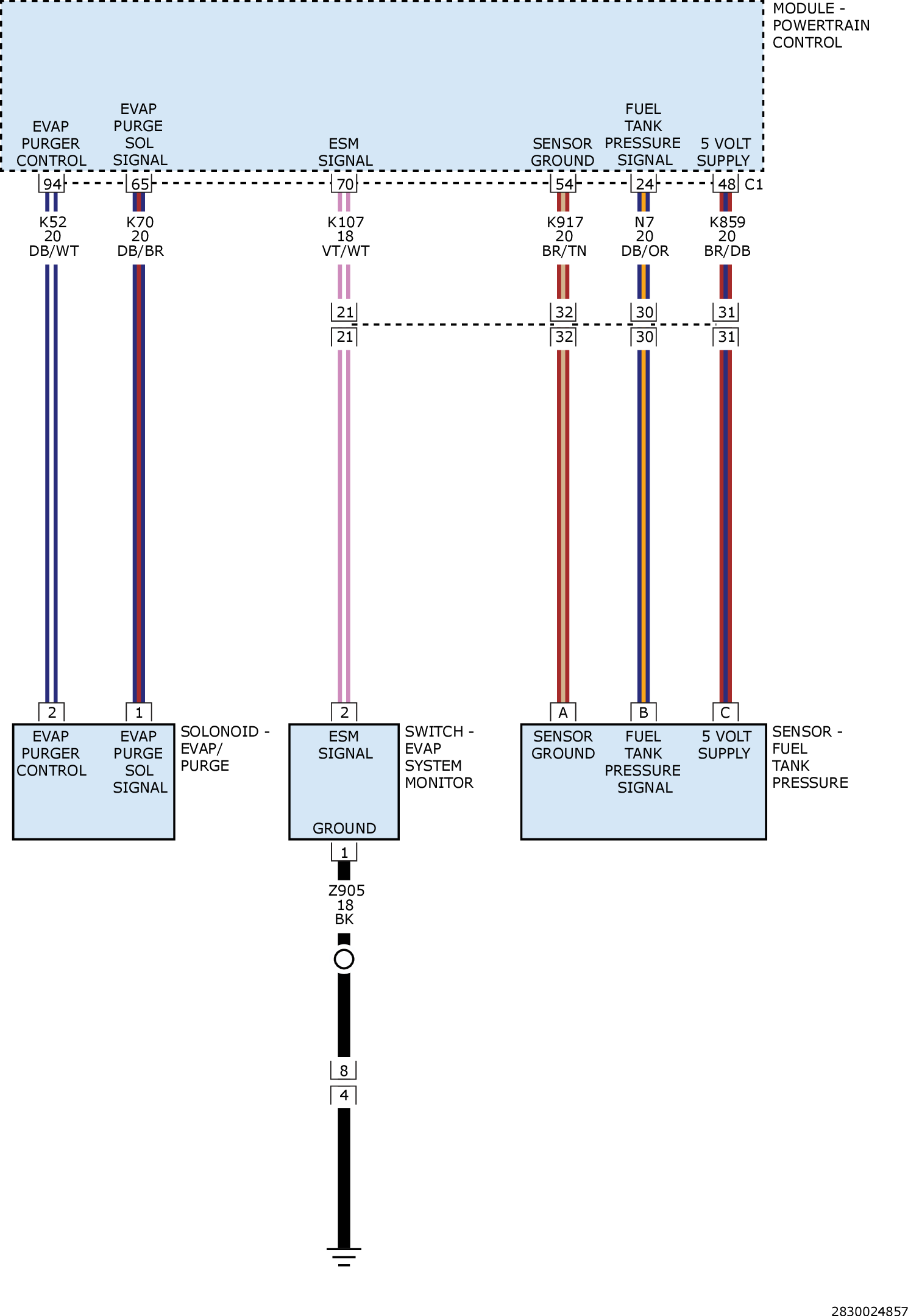

Fig 1: EVAP System Circuit Diagram
Courtesy of CHRYSLER GROUP, LLC
