P0440-General EVAP System Failure: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

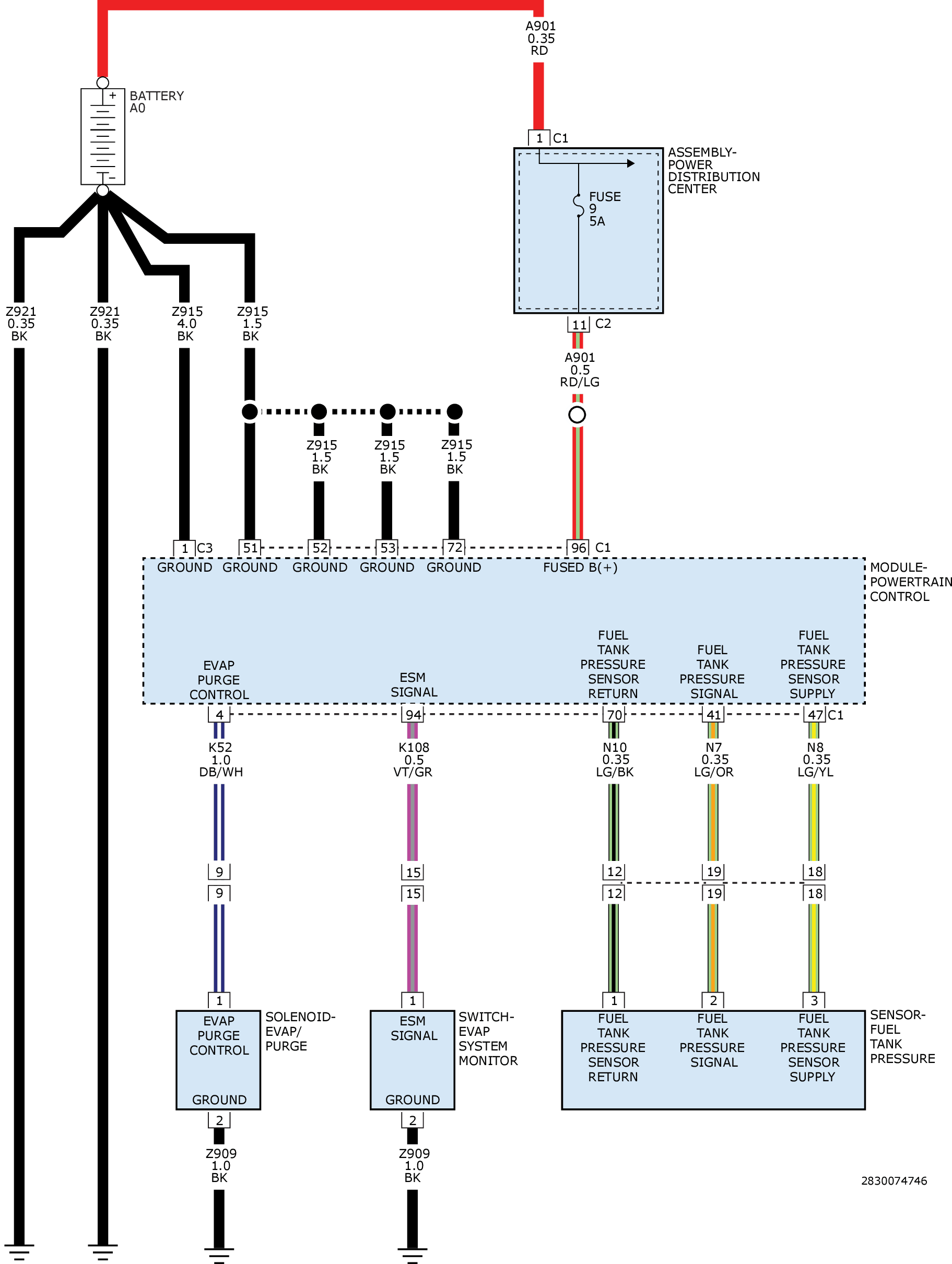

Fig 1: EVAP System Circuit Diagram

GC0168489

Courtesy of CHRYSLER GROUP, LLC
