P0202-Fuel Injector 2 Circuit/Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

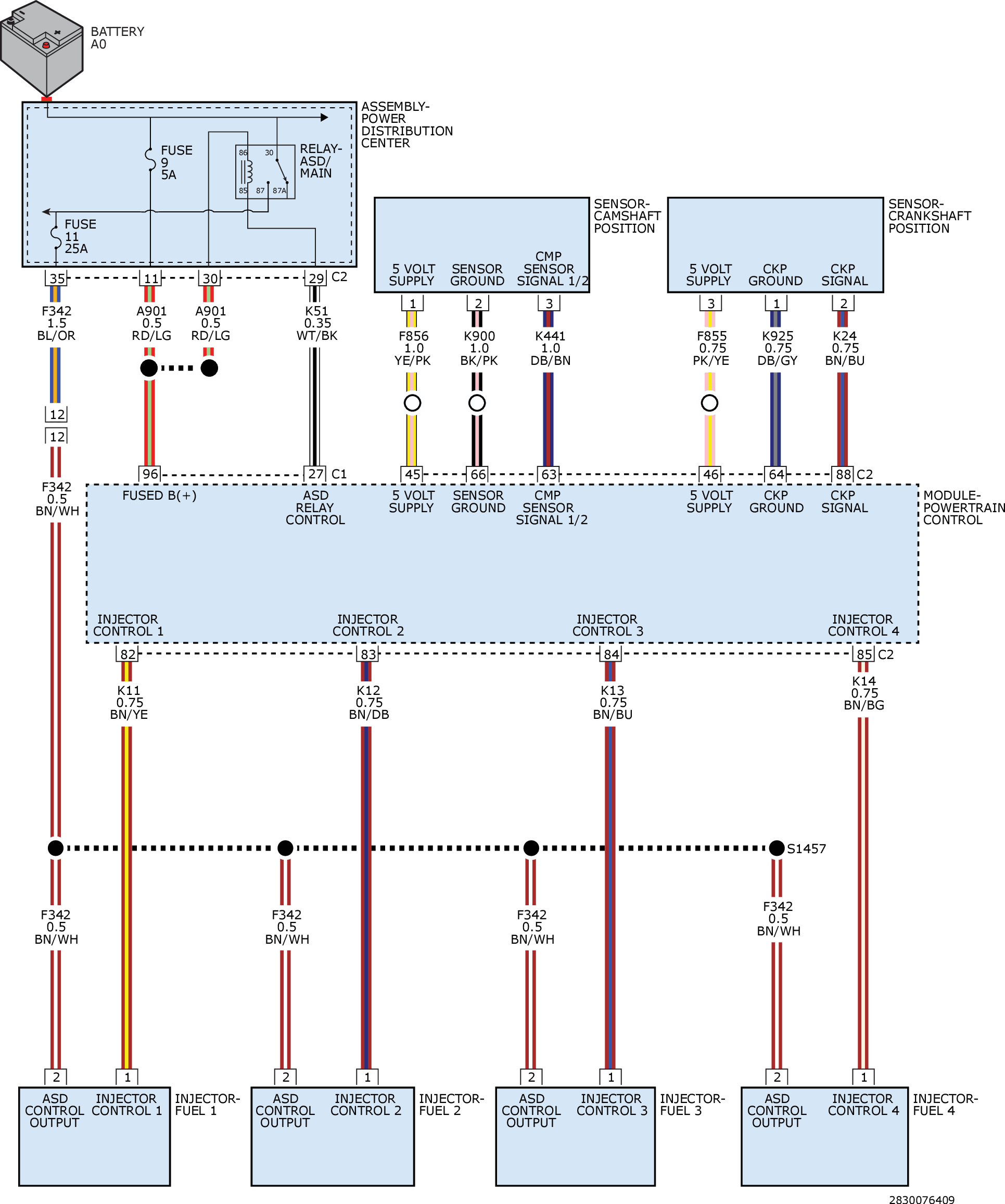

Fig 1: Fuel Injectors, Camshaft Position And Crankshaft Position Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
