Outlet, Power, 115 V: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

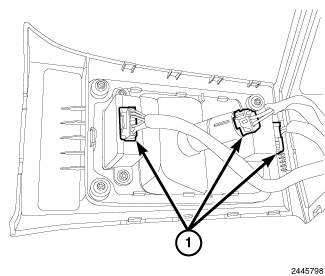

Fig 1: Electrical Connectors

Courtesy of CHRYSLER GROUP, LLC

Install the outlet into the bezel.
Connect the electrical connectors (1).

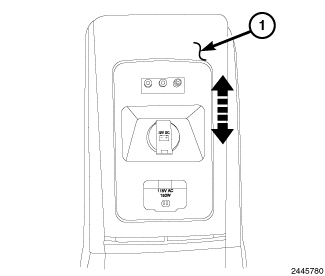

Fig 2: Removing/Installing Rear Bezel
Courtesy of CHRYSLER GROUP, LLC
Slide the rear bezel (1) down to install.

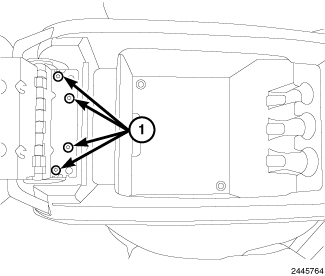

Fig 3: Center Console Hinge Screws
Courtesy of CHRYSLER GROUP, LLC
Install the hinge screws (1) and close the lid.
Connect the negative battery cable.
