Throttle Body: Installation: 3.6L

Clean the mating surfaces of the throttle body and intake manifold.

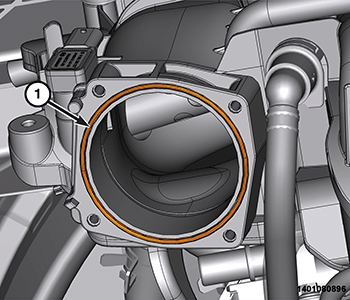

Fig 1: Throttle Body O-Ring
Courtesy of CHRYSLER GROUP, LLC
Install a NEW O-ring seal onto the intake manifold.

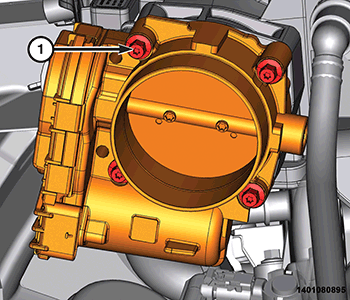

Fig 2: Throttle Body Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the throttle body and tighten the four bolts (1) in a criss-cross pattern sequence to the proper specification. Refer to TORQUE SPECIFICATIONS .

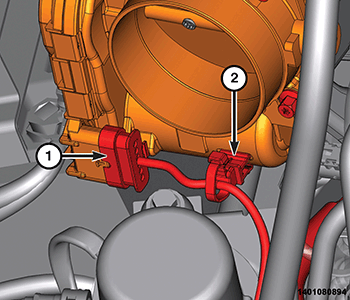

Fig 3: Throttle Body Connector & Clip
Courtesy of CHRYSLER GROUP, LLC
Connect the throttle body wire harness connector (1) and secure the wire harness to the clip (2) on the throttle body.
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
Connect the negative battery cable.
