Insulator, Engine Mount, Rear: Removal: Removal: Notes

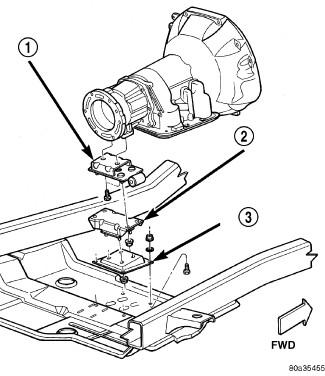

Fig 1: Rear Engine Mount Isolator & Bracket (Automatic Transmission)

Courtesy of CHRYSLER GROUP, LLC

1. Remove the nuts and the rear engine mount isolator (2).
2. On 4x4 vehicles If required, remove the bolts and the rear engine mount bracket (1).
   Fig 2: Rear Engine Mount Bracket & Bolts (4x2)

   Courtesy of CHRYSLER GROUP, LLC
3. On 4x2 vehicles if required, remove four bolts (1) and the rear engine mount bracket (2).
