2.0L Diesel: Installation

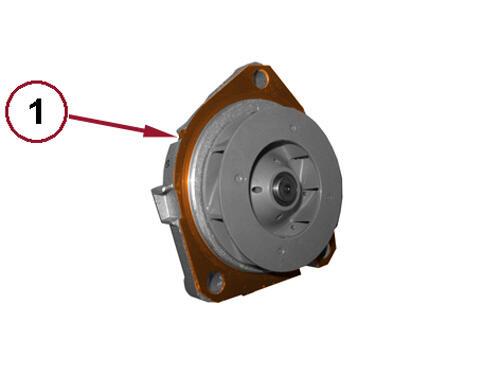

Fig 1: Retaining Tabs
GC0165011Courtesy of CHRYSLER GROUP, LLC
  1. Install a NEW  gasket seal on the water pump by folding the retaining tabs (1).

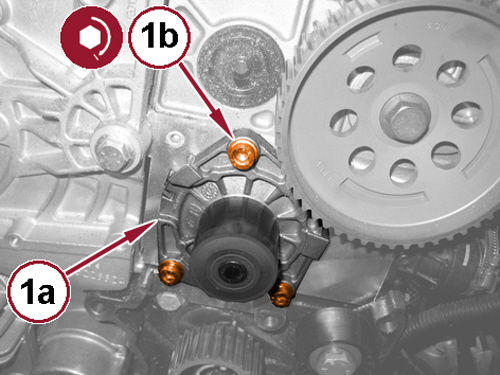

    Fig 2: Water Pump & Bolts
    GC0164438Courtesy of CHRYSLER GROUP, LLC
  2. Install the water pump (1a). Tighten the bolts (1b) to the proper specification. Refer to SPECIFICATIONS .
  3. Install the timing belt. .
  4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Remove the support and lower the vehicle.
  6. Evacuate the air and fill the cooling system. Refer to STANDARD PROCEDURE .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  8. Check cooling system for leaks. Refer to LEAK TESTING  .
