Turbo Inlet Temperature Sensor: Installation

NOTE:

2.0L Turbo Diesel 170 CV

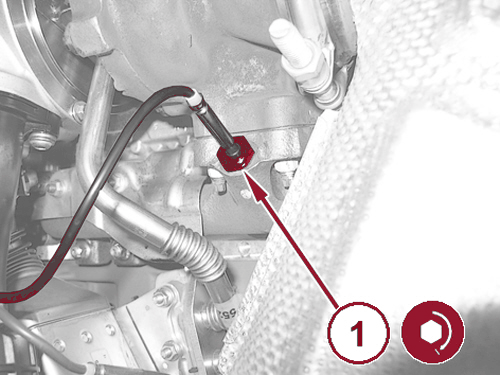

Fig 1: Turbocharger Exhaust Gas Inlet Temperature Sensor & Fitting

Courtesy of CHRYSLER GROUP, LLC

1. Put into place the turbocharger exhaust gas inlet temperature sensor (1) and tighten to the proper torque specification. Refer to SPECIFICATIONS .
2. Connect the electrical connection of the exhaust gas turbocharger inlet temperature sensor.
3. Connect the electrical connection of the sensor temperature particulate filter, upstream of the DPF.
4. Install the radiator. Refer to RADIATOR, ENGINE COOLING, REMOVAL AND INSTALLATION .
5. Install the radiator cooling fan. Refer to FAN, COOLING, REMOVAL AND INSTALLATION .
6. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
7. Evacuate and charge the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
8. Fill the cooling system. Refer to STANDARD PROCEDURE .
9. Install the front belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
10. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION for 1.4L or COVER, ENGINE, REMOVAL AND INSTALLATION for 2.4L.
