P0960-00-Pressure Control Solenoid 1 Control Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

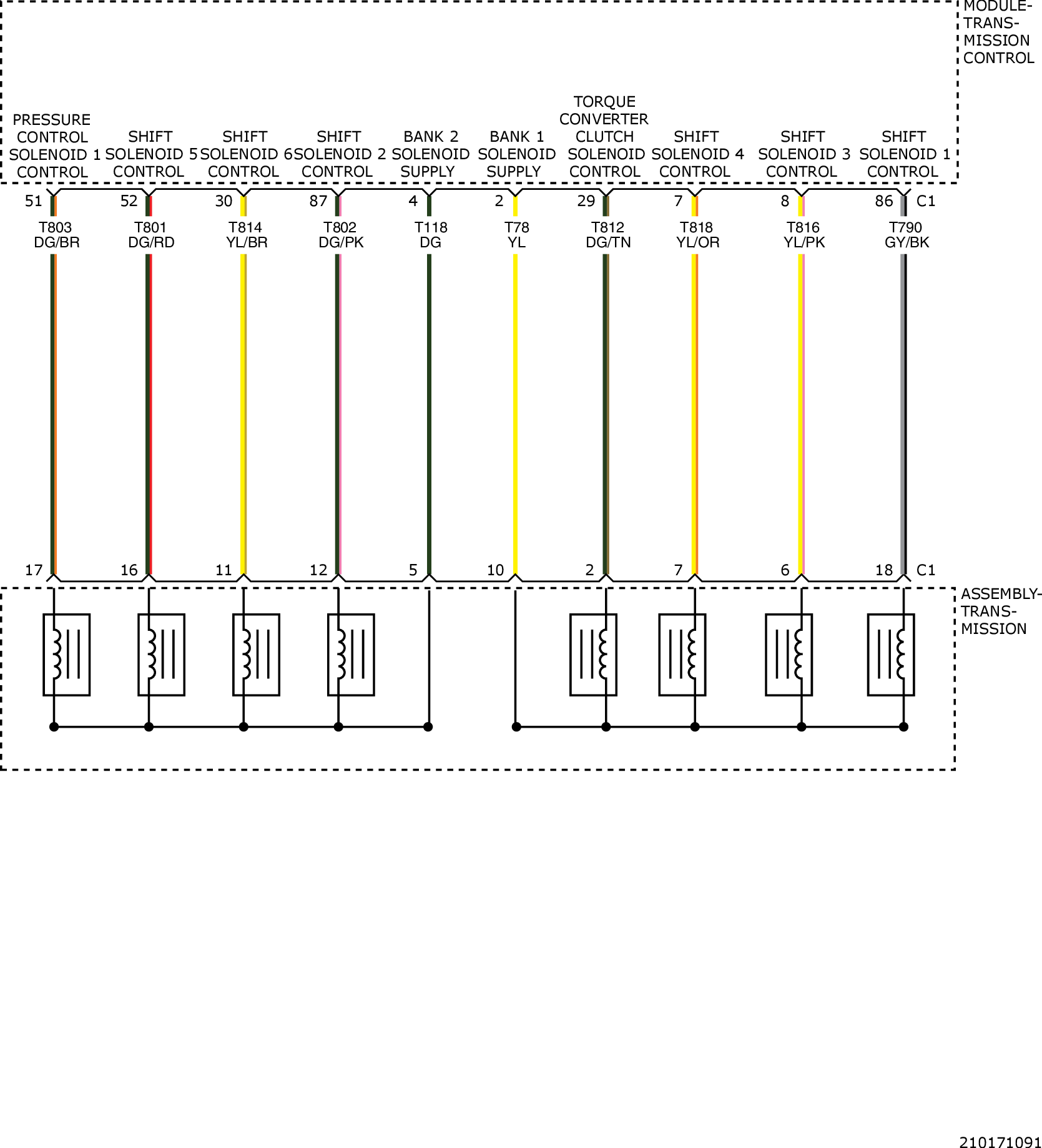

Fig 1: Transmission Solenoids Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
