Gas Engine

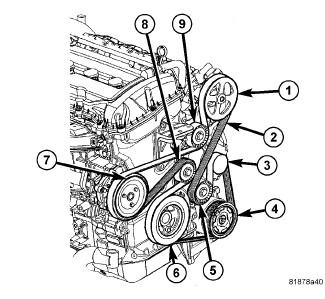

Fig 1: Accessory Drive Belt Routing
GC0083970Courtesy of CHRYSLER GROUP, LLC
  1. Position accessory drive belt tensioner (8) and install mounting bolt (1). Tighten bolt (1) to 24 N.m (212 in. lbs.).
  2. Install accessory drive belt (2). Refer to BELT, SERPENTINE, INSTALLATION .

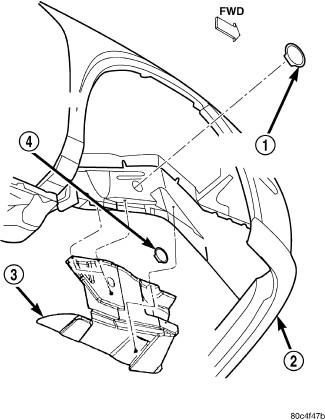

    Fig 2: Splash Shield
    GC0098462Courtesy of CHRYSLER GROUP, LLC
  3. Install belt splash shield (3).
  4. Lower vehicle.
