Pump, Fluid: Disassembly: Disassembly

Drain the fluid from the transaxle. Refer to FLUID, STANDARD PROCEDURES .
Remove the transaxle from the vehicle. Refer to REMOVAL .
Disassemble the transaxle to gain access to the fluid pump. Refer to DISASSEMBLY .
Remove the 2-6 brake piston from the fluid pump housing. Refer to BRAKE AND PISTON, 2-6, REMOVAL .

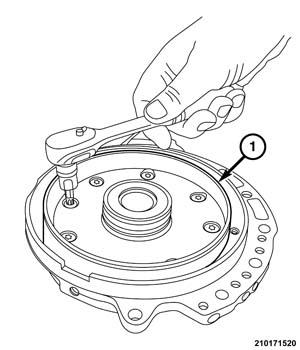

Fig 1: Fluid Pump Cover
Courtesy of CHRYSLER GROUP, LLC
Remove screws holding fluid pump cover (1) to the fluid pump. It may be necessary to use an impact driver to loosen the screws to avoid damaging the Torx® head of the bolts.

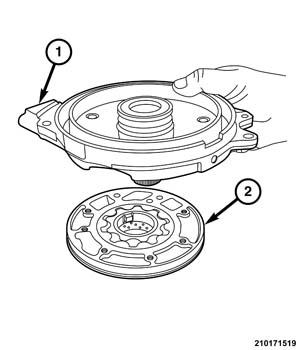

Fig 2: Fluid Pump & Fluid Pump Cover
Courtesy of CHRYSLER GROUP, LLC
Separate the fluid pump cover (1) from the fluid pump (2).

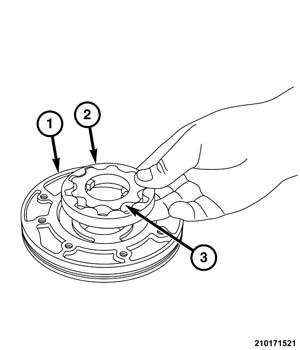

Fig 3: Fluid Pump Housing & Rotor Assembly
Courtesy of CHRYSLER GROUP, LLC
Separate the gerotor assembly (2-3) from the fluid pump housing (1).
