Seal, Output Flange: Removal: Removal
WARNING: This page is about a different car, the 2012 Jeep Patriot and 2012 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC
- Raise the vehicle on a hoist.
- Remove right side halfshaft. Refer to REMOVAL
or REMOVAL
or REMOVAL
.

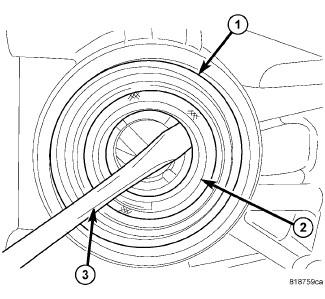

- Remove the pinion side seal (2).
Courtesy of CHRYSLER GROUP, LLC
- Remove left side halfshaft. Refer to REMOVAL
or REMOVAL
or REMOVAL
.

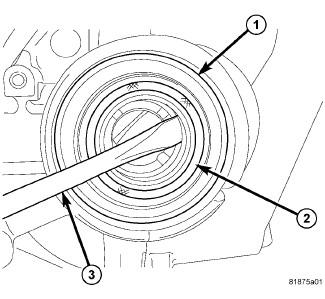

- Remove ring gear side seal.
