Section 367 (Audio/Video/Entertainment/Connectivity (Service Information) - MK): Amplifier: Installation

WARNING: This page is about a different car, the 2017 Jeep Patriot and 2017 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

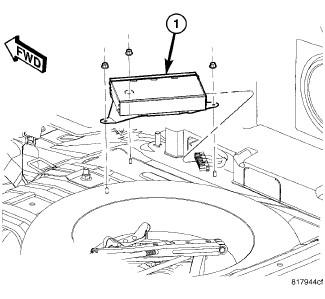

Install amplifier (1).
Install the mounting fasteners.
Connect wire harness connector to amplifier.
Connect battery negative cable.
